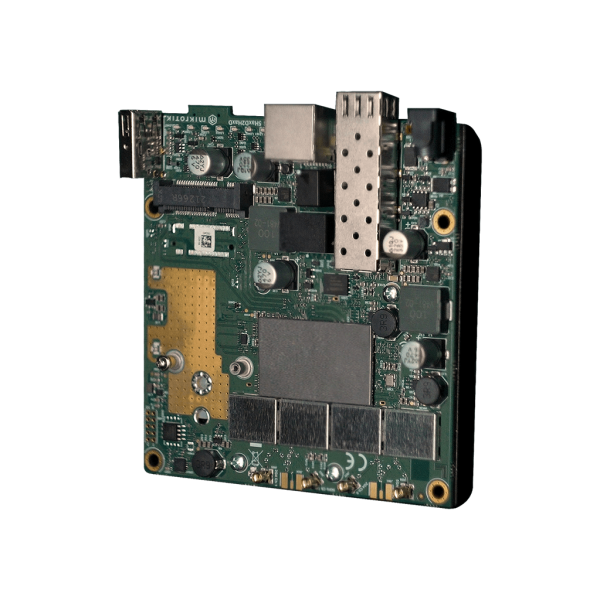

RouterBOARD L23UGSR-5HaxD2HaxD (RouterOS L4)

Product code: L23UGSR-5HaxD2HaxD

Architecture: ARM

CPU: IPQ-5010

CPU core count: 2

CPU nominal frequency: 800 MHz

RouterOS license: 4

Operating System: RouterOS v7

Size of RAM: 256 MB

Storage size: 128 MB

Storage type: NAND

Tested ambient temperature: -40°C to 70°C

Number of DC inputs: 2 (DC jack, PoE-IN)

DC jack input Voltage: 12-28 V

Max power consumption: 25 W

Max power consumption without attachments: 12 W

Cooling type: Passive

PoE in: Passive PoE

PoE in input Voltage: 18-28 V

Wireless 2.4 GHz Max data rate: 574 Mbit/s

Wireless 2.4 GHz number of chains: 2

Wireless 2.4 GHz standards: 802.11b/g/n/ax

Wireless 2.4 GHz chip model: IPQ-5010

Wireless 2.4 GHz generation: Wi-Fi 6

Wireless 5 GHz Max data rate: 1200 Mbit/s

Wireless 5 GHz number of chains: 2

Wireless 5 GHz standards: 802.11a/n/ac/ax

Wireless 5 GHz chip model: QCN-6102

Wireless 5 GHz generation: Wi-Fi 6

10/100/1000 Ethernet ports: 1

SFP ports: 1 (2.5G supported)

Number of SIM slots: 1 Modem (Nano SIM)

MiniPCI-e slots: 1

Number of USB ports: 1

USB Power Reset: Yes

USB slot type: USB type A

Max USB current (A): 1

PCB temperature monitor: Yes

Voltage Monitor: Yes

Beeper: Yes

Certification: CE, FCC, IC, ROHS
