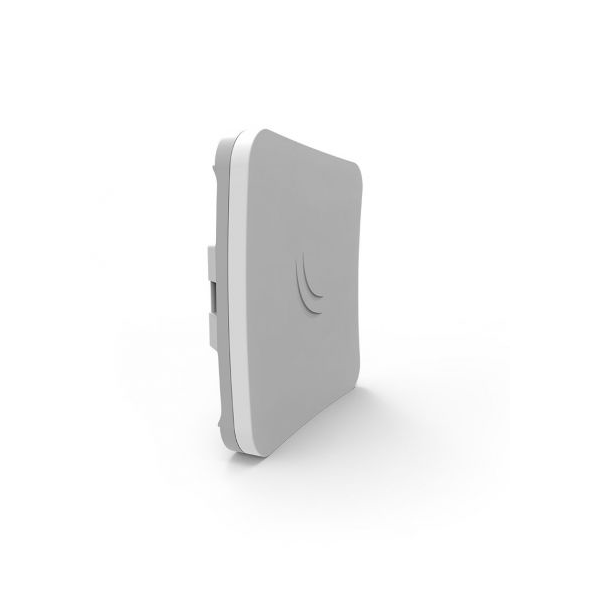

Routerboard SXT 5GHz Dual Chain AC CPE 16dBi

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

- SXTsq 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.



- SXTsq 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code	RBSXTsqG-5acD
Architecture	ARM 32bit
CPU	IPQ-4018-0-180DRQFN-TR-00-0
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	129 x 129 x 34 mm
License level	3
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40 to 70° C

Wireless

Details
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11ac
Antenna gain dBi for 5 GHz	16
Wireless 5 GHz chip model	IPQ-4018-0-180DRQFN-TR-00-0

Ethernet

Details
10/100/1000 Ethernet ports	1
