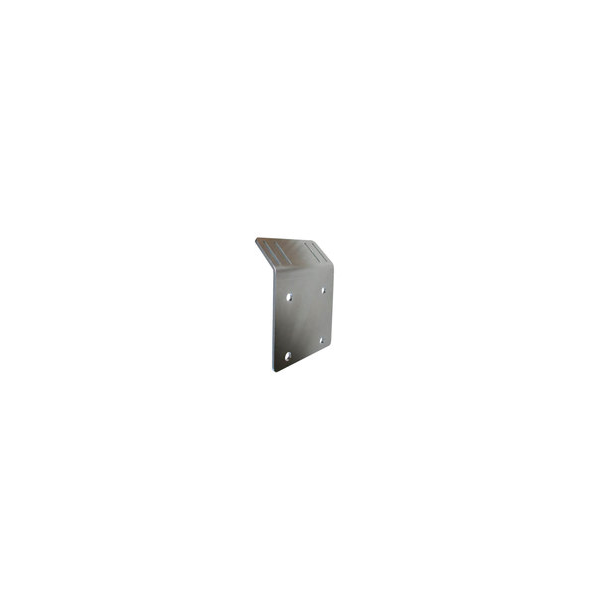

SIRIO M-4 Bracket ± 45° SLP 4G-LTE, SY-906 & SY-910

SMP4GLTEMIMO

Product Specification

• Type: Mini Panel

• Radiation: Directional

• Polarization: Linear vertical

• Frequency range: 90-960 MHz & 1700-2700 MHz No tuning required

• Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, WiFi-2.4GHz

• Gain:

• 5 dBi @ 790-960 MHz

• 8 dBi @ 1.71-2.7 GHz

• Max Power:

• 20 Watts @ 790-960 MHz

• 8 Watts @ 1.71-2.7 GHz

• Cable lenght / type: 30 cm / Low loss

• Connector: 2 x SMA-male

• Grounding protection: DC-Ground

• Connector: N-female

• Materials: Galvanized steel, Thermoplastic UV stabilized, PCB

• Dimensions (approx): 153 x 134 x 46 mm

• Weight (approx): 400 gr

• Mounting type: On-Mast, On-Wall
