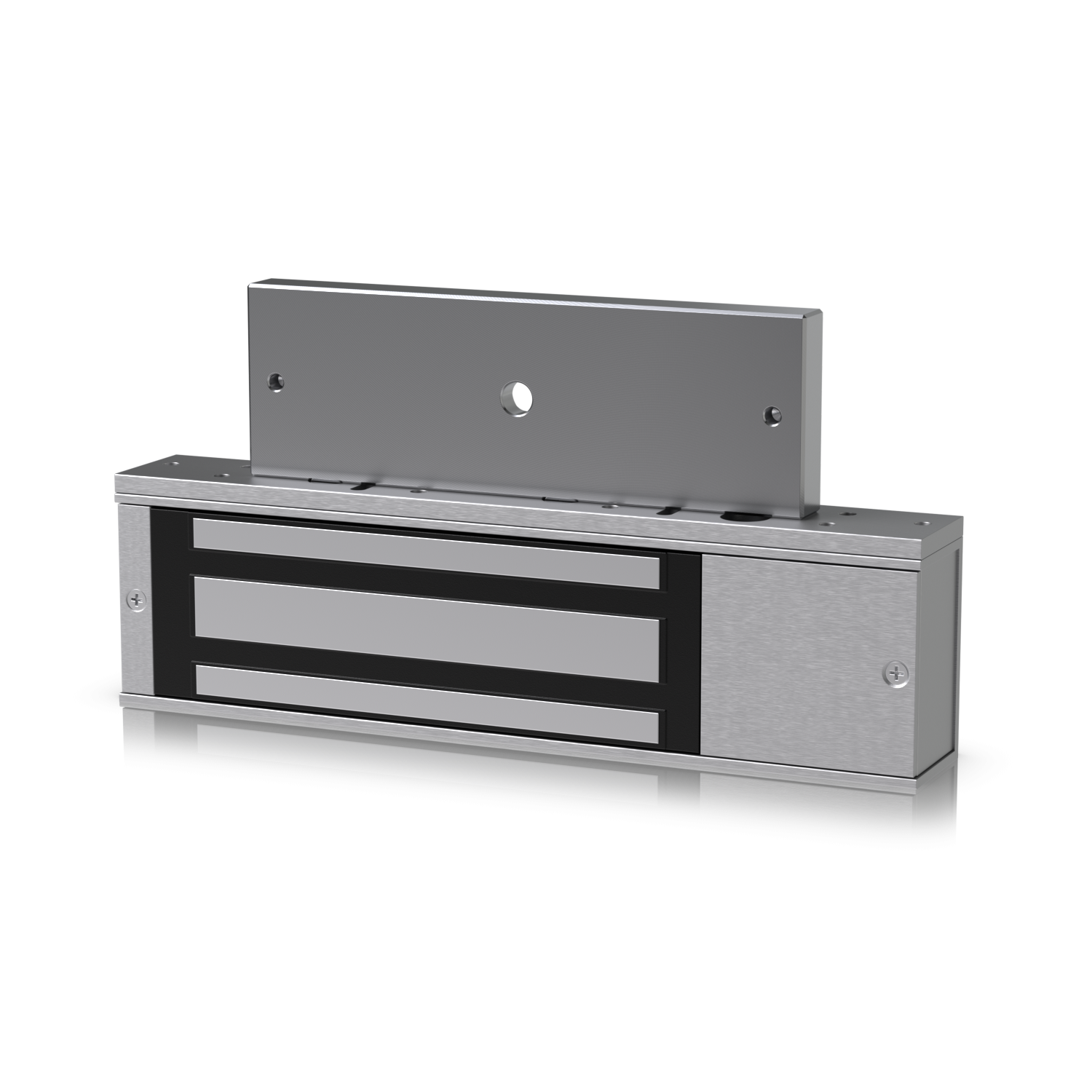

Ubiquiti Access Magnetic Lock,

Product Specification

• Dimensions:

• Lock body: 250 x 42.5 x 26 mm

• Install plate: 250 x 25x 5 mm

• Armature: 185.5 x 38.5 x 11 mm

• Weight

• Lock body: 1 kg

• Install plate: 70 g

• Armature: 600 g

• Enclosure material: Device/brackets: aluminum

• Armature: steel

• Voltage: 12V DC

• Current power: UA-Lock-Magnetic-270kg: 500mA ±10%

• Wiring connection:

• Connect below terminals to UA-Hub:

• Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub)

• Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub)

• DPS/+ (DPS+ on UA-Hub)

• DPS/-(DPS-onUA-Hub)

• Lock type: Fail safe lock, Single door

• Holding force: 270 kg

• LED:

• Green: unlocked

• Red: locked

• Suitability: wooden/metal/glass door

• Mounting accessories:

• L bracket : door thickness < 42 mm (< 1.7"), outward opening door

• Z bracket: used with L bracket for inward opening door

• U bracket: used with glass door

• Ambient operating temperature: -10 to 50° C (14 to 122° F)

• Ambient operating humidity: 5 to 90% noncondensing

• Certifications: FCC, IC, CE

•
