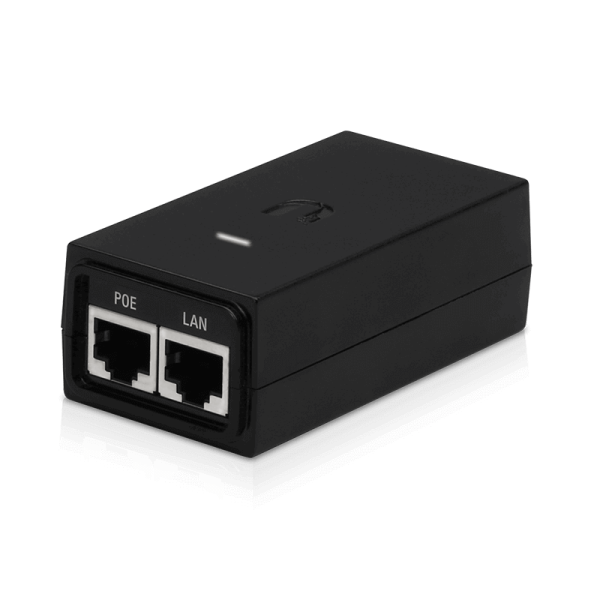

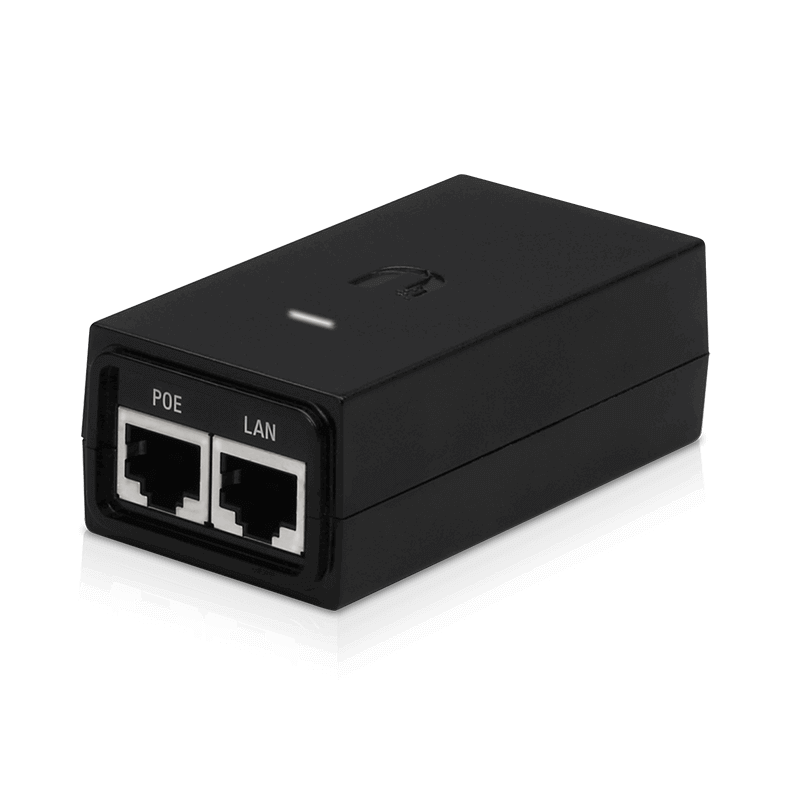

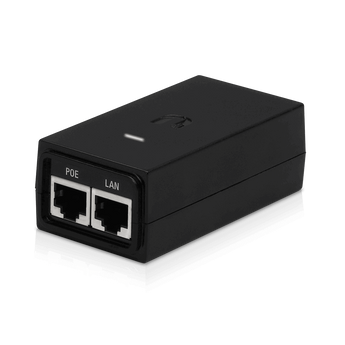

Ubiquiti Active POE 24V 0.5A (12W)

POE-24-12W

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

• Surge protection

• Clamping protection

• Maximum surge discharge

• Peak pulse current

• AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Product Specification

• Dimensions: 87 x 44 x 29 mm

• Weight: 92 g

• Output Voltage: 24VDC @ 0.5A

• LAN Activity Indicator: No

• Gigabit LAN Port: No

• Remote Reset Capability: Yes

• Reset Button: Yes

• Rated Voltage: 100-240VAC @ 50/60Hz

• Input Current: 0.3A @ 120VAC, 0.2A @ 240VAC

• Inrush Current: <30A Peak @ 120VAC, <60A Peak @ 230VAC

• Efficiency: 0.75

• Output Ripple: 1% Max.

• Switching Frequency: 50 kHz

• Line Regulation: ≤ 3%

• Load Regulation: ≤ 5%

• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)

• 4-Pair Powering: -

• Operating Temperature: 0 to 40° C

• Storage Temperature: -30 to 70°C

• Operating Humidity: 35 to 95% Noncondensing

• AC Connector: IEC-320 C6

• Data IN / POE: RJ45 Shielded Socket

• Surge Protection: Difference and Common Mode

• Clamping Protection: 11V Data, 60V Power

• Max. Surge Discharge: 1500A (8/20 µs) Power

• Peak Pulse Current: 36A (10/1000 µs) Data

• Shunt Capacitance: <5 pF data

• Response Time: <1 ns

• Certifications: CE, FCC, IC, UL
