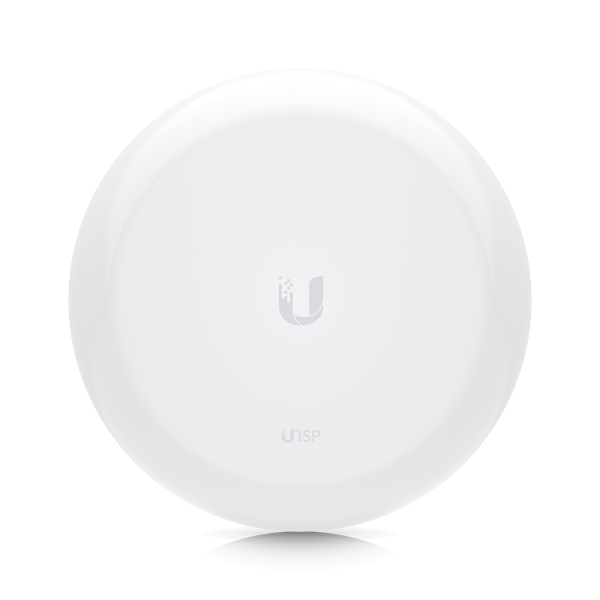

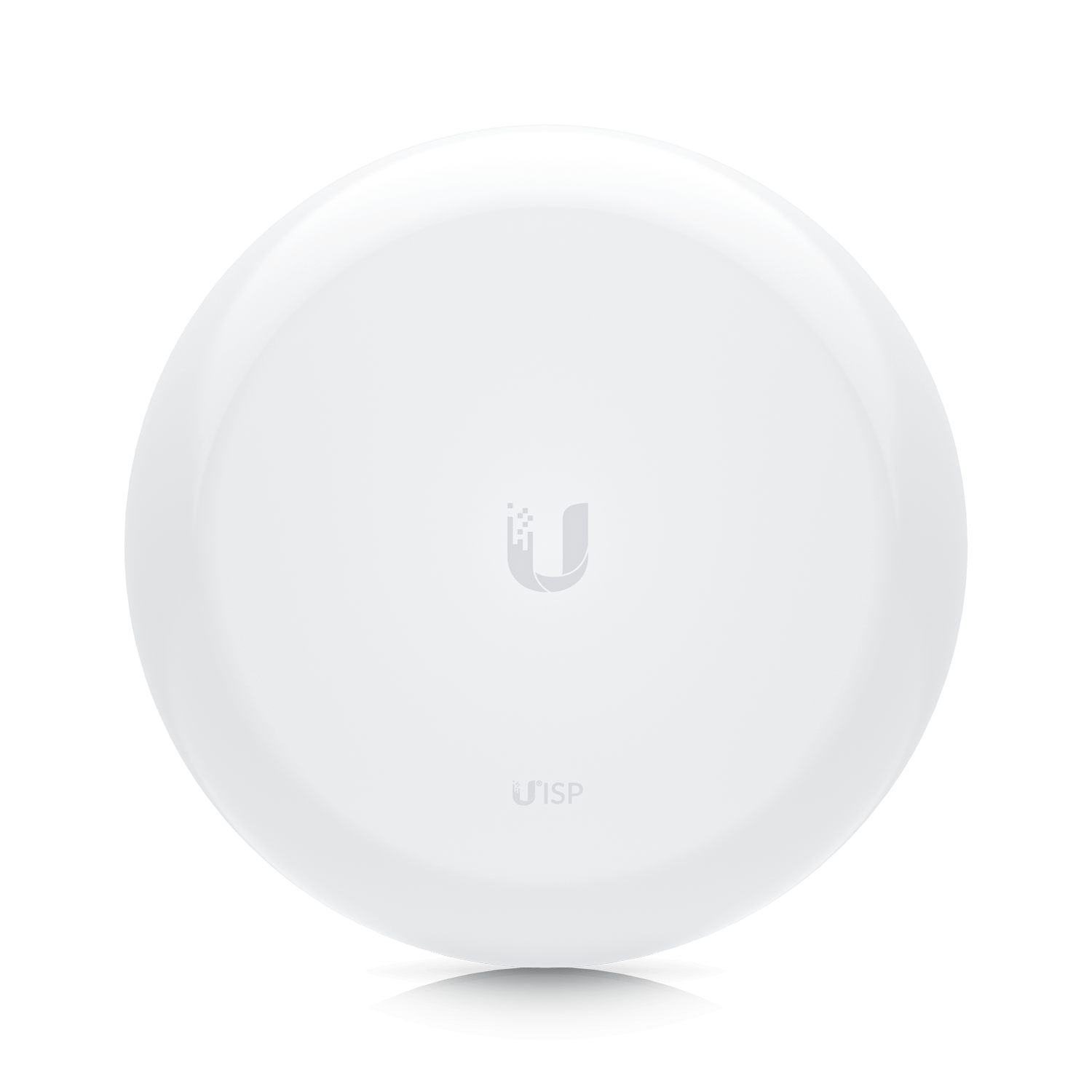

Ubiquiti airFiber 60 HD

AF60-HD

Features

• 2 km link range

• 6 Gbps max. throughput

• (1) GbE and (1) 10G SFP+ port

• Precision alignment mount

• Integrated GPS

Note. This product should be purchased in pairs in order to form links.

Product Specification

• Dimensions: Ø189 x 89 mm (Ø7.4 x 3.5")

• Weight:

• Without mount: 1.8 kg (3.9 lb)

• With mount: 2.95 kg (6.5 lb)

• Enclosure material: Aluminum alloy, UV stabilized plastic

• Mount material: Stainless steel (SUS304)

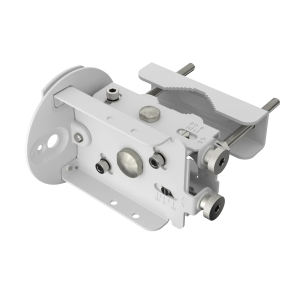

• Mount: 60G precision alignment pole mount (included)

• Wind loading: 64 N at 200 km/h (14.39 lbf at 125 mph)

• Weatherproofing: IPX6

• Processor: Quad-core ARM® Cortex® A72 at 1.6 GHz

• Memory: 2 GB DDR4

• Networking interface:

• (1) GbE RJ45 port

• (1) 1/10G SFP+ port

• Max. power consumption: 29.31W

• Power method:

• Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

• Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

• Power supply: 48V DC, 0.65A gigabit PoE adapter (Included)

• Supported voltage range:

• 44–54V DC

• 22–27V DC

• GPS: Yes

• RF connections: Internal

• Button: Factory reset

• Ambient operating temperature: -40 to 55° C (-40 to 131° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE, terragraph

• Operating mode: PtP Only

• Services: UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery

• Utilities: Beamform info, discovery utility, ping, trace route, speed test

• Network: Bridge mode

• Wireless settings: GPS sync

• Management interface: Bluetooth management for easy setup over UISP App

• WEB UI

• Minimum software requirements: Any modern web browser/iOS™ or Android™ based smartphone

• Max. throughput 60 GHz: 3.8 Gbps/ 6 Gbps (with channel bonding enabled)

• Max. range: 2 km

• Encryption: WPA2-PSK (AES)

• Uplink/Downlink ratio: 50/50

• Operating frequency*: 57–66 GHz*

• Channel bandwidth: 2160 MHz/4320 MHz (with channel bonding enabled)

• Operating channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz**

• Polarization: Vertically linear

• Beamwidth:

• Azimuth: 3 dB 3°

• Elevation: 3 dB 3°

• Electrical downtilt: 0°

* Depends on regulatory region.

**Depends on the channel bandwidth.
