Ubiquiti airFiber 60 LR - AF60-LR

AF60-LR

airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances

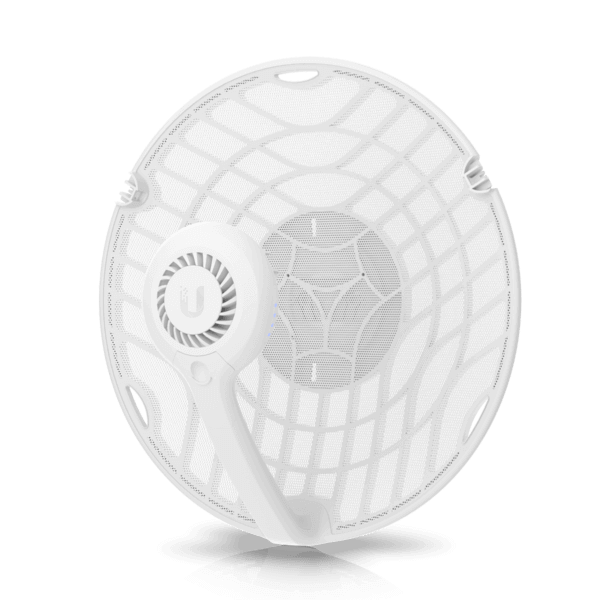

AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.

Includes a built-in Bluetooth management radio for easy setup.

Features

• Low-Interference 60 GHz Spectrum

• Integrated GPS

• Long Range, over 12 km

• Precision Alignment Mount Included

• link.ui.com Planning Support

• Quick Setup Using the *UISP™ App via Bluetooth

*UNMS application will change to UISP™ application from version 1.3.0 onward.

Product Specification

• Dimensions: Ø413 x 360 mm

• Weight without mount: 1.5 kg

• Weight with mount: 2.7 kg

• Enclosure materials: Aluminum, UV stabilized polycarbonate

• Mount material: Galvanized steel

• Mounting: Precision Alignment Kit (included)

• Pole compatibility: Ø25.4-76.2 mm (Ø1-3")

• Wind loading: 420 N at 200 km/h (94.4 lbf at 125 mph)

• Processor: Quad-Core ARM® Cortex® A7

• Memory: 256 MB DDR3

• Networking interface: GbE RJ45 port

• RF Connections: Internal

• Max. Power Consumption: 18W

• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )

• Power supply: 48VDC, 0.65A gigabit PoE adapter (included)

• Supported Voltage Range: 48VDC ± 10%

• ESD/EMP Protection: Air/Contact: ± 24kV

• Operating Temperature: -40 to 60° C (-40 to 140° F)

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: FCC, IC, CE

• OS: airOS®

• Operating mode PtP: only

• Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol, Wave technology

• Network: Bridge mode

• Services: UISP, ping watchdog, NTP client, device discovery

• Tools: Antenna alignment, discovery utility, ping, trace route, speed test

• Software management:

• Bluetooth management for easy setup over UISP app

• WEB UI

• Minimum software requirements: Any modern WEB browser/iOS or Android based smartphone

• Maximum throughput: 1.95 Gbps

• Maximum range: 12+ km

• Encryption: WPA2-PSK (AES)

• Operating Frequency*: 57 to 71 Ghz

• GPS: Yes

• Channel Bandwidth: 2160, 1080 MHz

* Depends on regulatory region.
