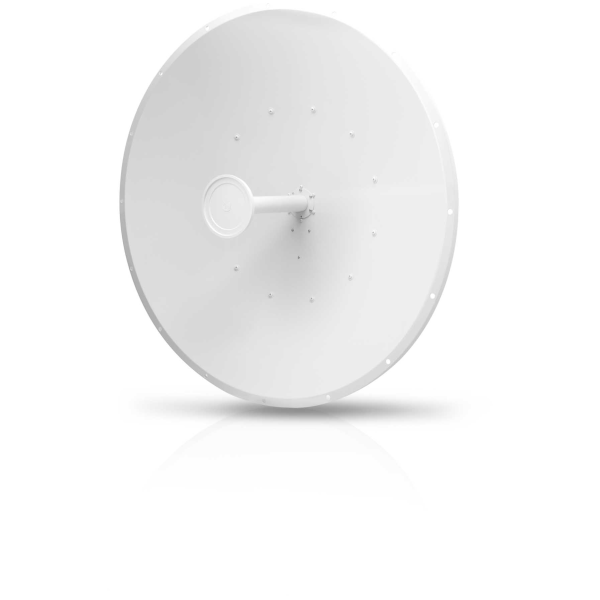

Ubiquiti Networks AF-5G34-S45 is designed for use with airFiber 5X radios. This 1050mm parabolic antenna features a 34dBi gain and a 45° slant, operating on 5GHz frequencies.
Product Specifications • Dimensions: &dia;1050 x 421mm (&dia;41.34 x 16.57") • Weight: 13.5kg (29.76lbs) • Frequency Range: 5100 - 5800MHz • Gain: 34dBi • +45° Beamwidth: 3° (3dB) • -45° Beamwidth: 3° (3dB) • F/B Ratio: 42dB • Max. VSWR: 1.4:1 • Wind Loading: 1779N @ 200km/h (400lbf @ 125mph) • Wind Survivability: 200km/h (125mph) • Polarization: Dual-Linear • Cross-pol Isolation: 35dB Min. • ETSI Specification: EN 302 326 DN2 • Universal Pole Mount, airFiber X Radio Bracket, and Weatherpoof RF Connectors included
