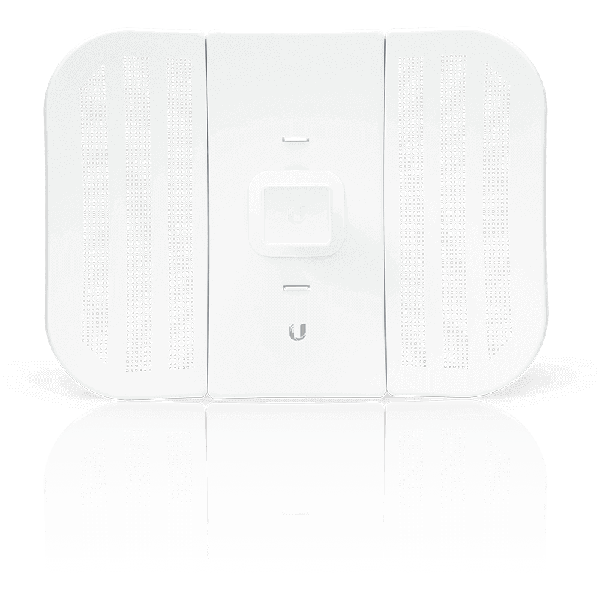

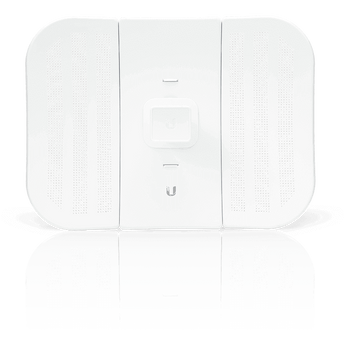

Ubiquiti AirGrid M5 HP Airmax 23dBi AP/CPE

LBE-M5-23

The LiteBeam®is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of

these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.

Features:

• Custom Ubiquiti® airMAX® Processor

• High-Gain Antenna with Proprietary InnerFeed™ Technology

• Innovative Snap-Lock Assembly for Quick Installation

• Convenient Ball Joint Design for Flexible Mounting and Aiming

• Lightweight and Compact Design

• Energy Efficient Wireless Bridge

Product Specification

• Dimensions (No Mount): 362 x 267 x 184 mm

• Weight (No Mount): 750 g

• Mounting Kit: Pole Mounting Kit (Included)

• Max. Power Consumption: 4W

• Power Supply: 24V, 0.2A PoE Adapter (Included)

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Shock and Vibration: ETSI300-019-1.4

• ETSI Specification: EN 302 326 DN2

• ESD/EMP Protection: ± 24 KV Contact / Air

• Processor Specs: Atheros MIPS 74Kc, 533 MHz

• Memory: 64 MB

• Networking Interface: (1) 10/100 Ethernet Port

• Operating Frequency Worldwide: 5150 - 5875 MHz

• Output Power: 25 dBm

• Gain: 23 dBi

• Max. VSWR: 1.5:1

• Wireless Approvals: FCC, IC, CE

• RoHS Compliance: Yes
