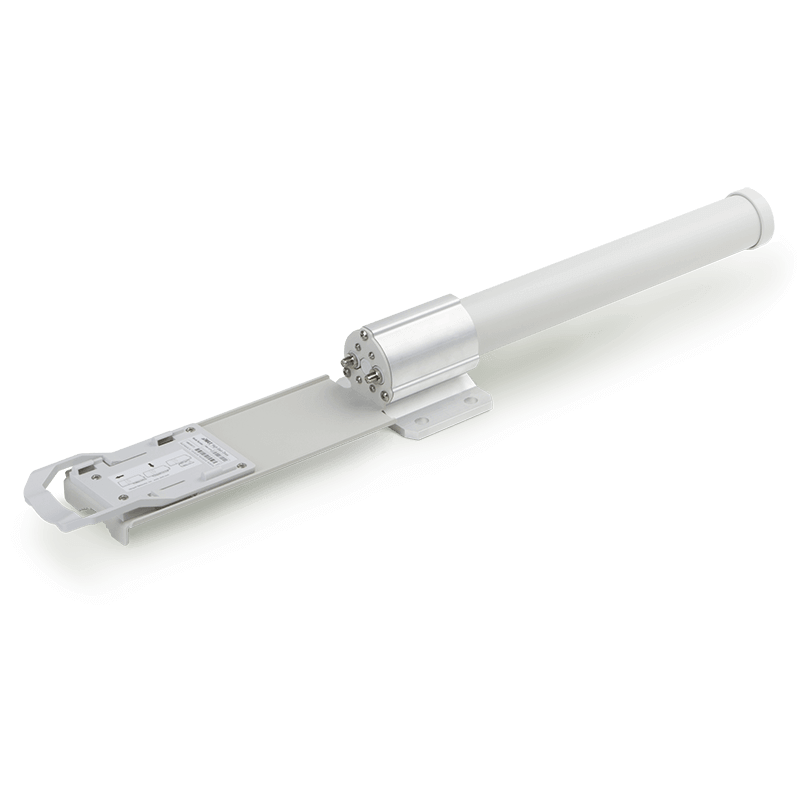

Ubiquiti AirMax 10dBi 5GHz Omni Antenna

AMO-5G10

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.

The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.

Product Specification

• Dimensions (mm): 582 x 90 x 65

• Weight: 0.68 kg

• Frequency Range: 5.45 - 5.85 GHz

• Gain: 10 dBi

• Elevation Beamwidth: 12°

• Max. VSWR: 1.6:1

• Downtilt: 4°

• Wind Survivability: 200 km/h

• Wind Loading: 71.17 N @ 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 25 dB Min.

• ETSI Specification: EN 302 326 DN2
