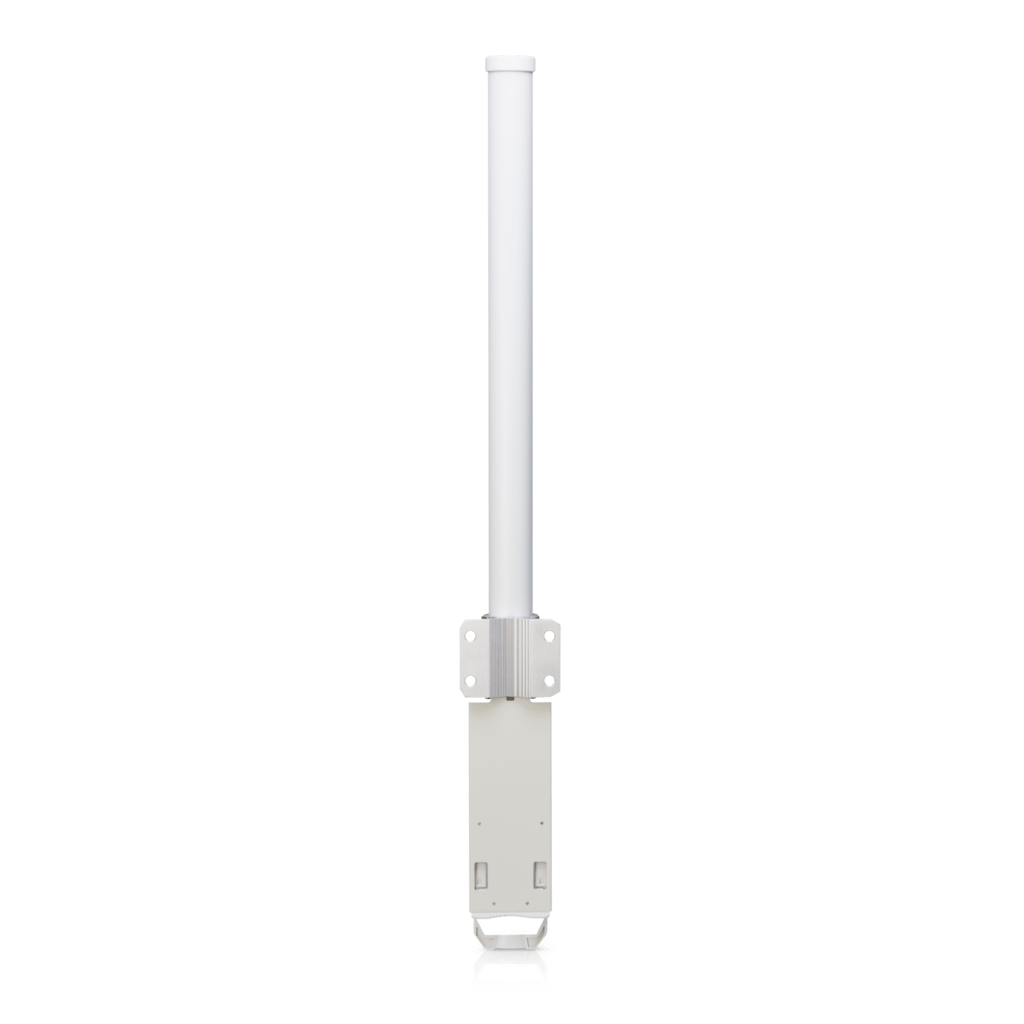

Ubiquiti AirMax 13dBi 5GHz Omni Antenna - AMO-5G13

AMO-5G13

The AMO-5G13 is a 5 GHz, 13 dBi airMAX Omni antenna that provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Product Specification

• Dimensions (mm): 799 x 90 x 65

• Weight: 0.82 kg

• Frequency Range: 5.45 - 5.85 GHz

• Gain: 13 dBi

• Elevation Beamwidth: 7°

• Max. VSWR: 1.5:1

• Downtilt: 2°

• Wind Survivability: 200 km/h

• Wind Loading: 84.52 N @ 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 25 dB Min.

• ETSI Specification: EN 302 326 DN2
