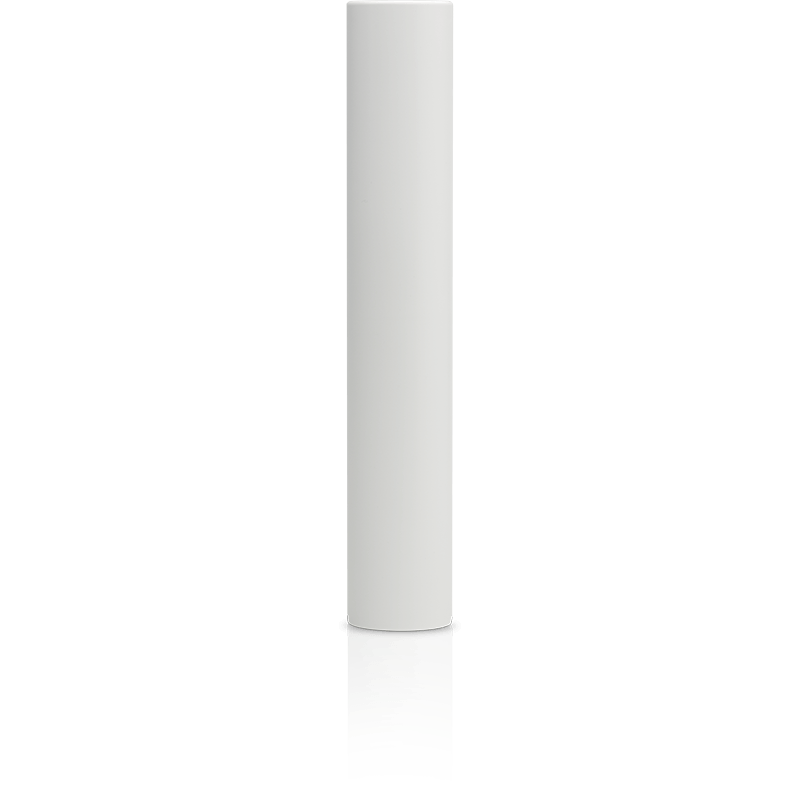

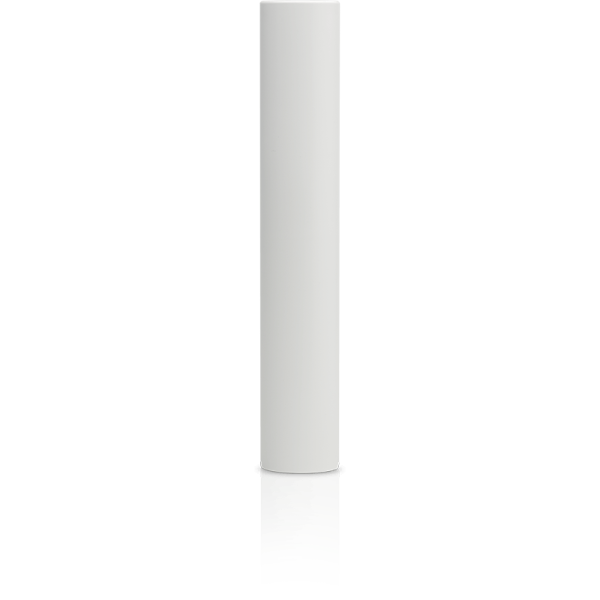

Ubiquiti AirMax 17dBi 5GHz Sector Antenna - AM-5G17-90

AM-5G17-90

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Product Specification

• Dimensions (mm): 367 x 63 x 41

• Weight: 1.1 kg

• Frequency Range: 4.90 - 5.85 GHz

• Gain: 16.1 - 17.1 dBi

• HPOL Beamwidth: 72° (6 dB)

• VPOL Beamwidth: 93° (6 dB)

• Electrical Beamwidth: 8°

• Electrical Downtilt: 4°

• Max. VSWR: 1.5:1

• Wind Survivability: 200 km/h

• Wind Loading: 41.7 N @ 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 22 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
