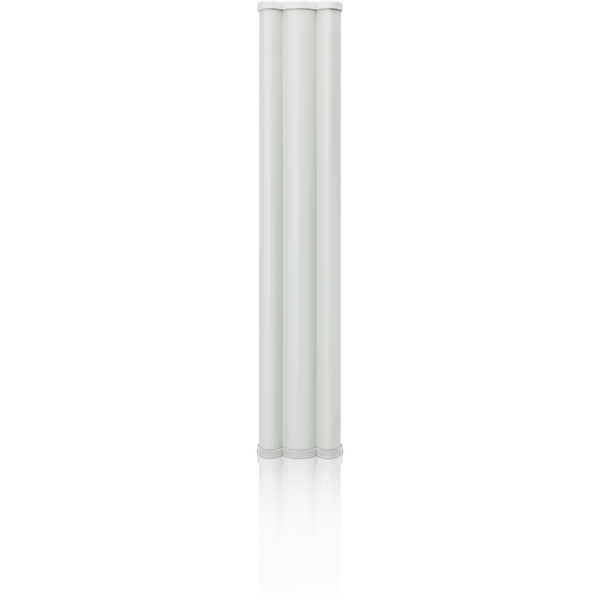

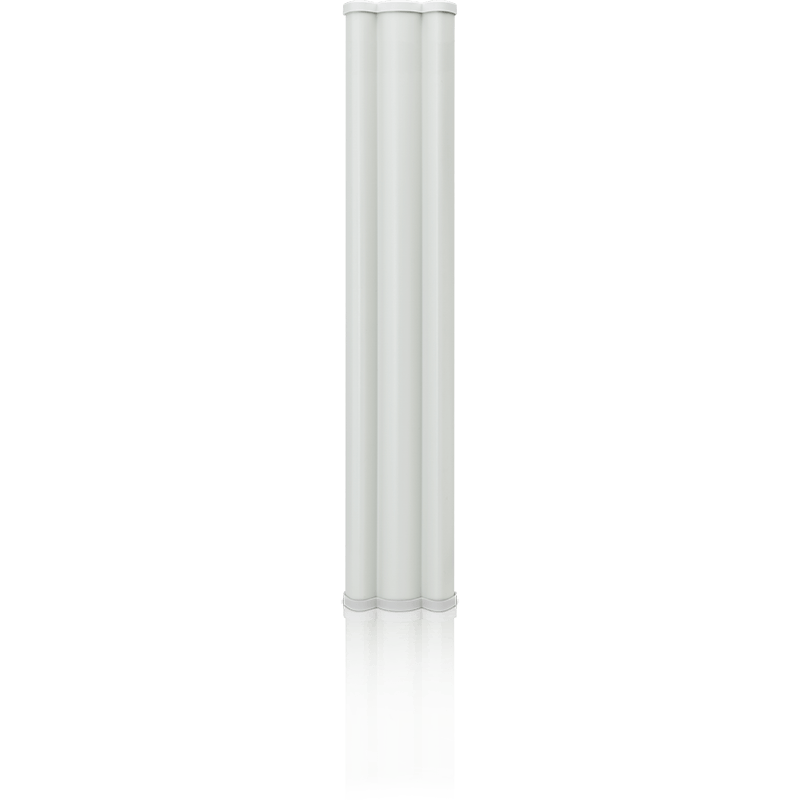

Ubiquiti AirMax 19dBi 5GHz Sector Antenna - AM-5G19

AM-5G19-120

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Product Specification

• Dimensions (mm): 700 x 135 x 73

• Weight: 5.9 kg

• Frequency Range: 5.15 - 5.85 GHz

• Gain: 18.6 - 19.1 dBi

• HPOL Beamwidth: 123° (6 dB)

• VPOL Beamwidth: 123° (6 dB)

• Electrical Beamwidth: 4°

• Electrical Downtilt: 2°

• Max. VSWR: 1.5:1

• Wind Survivability: 200 km/h

• Wind Loading: 137.9 N @ 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 28 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
