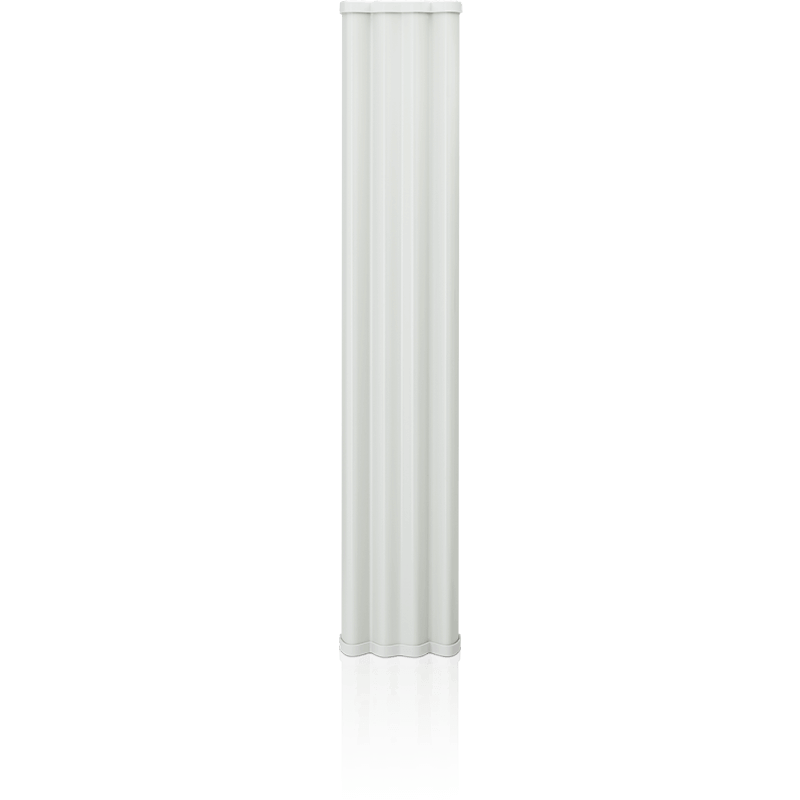

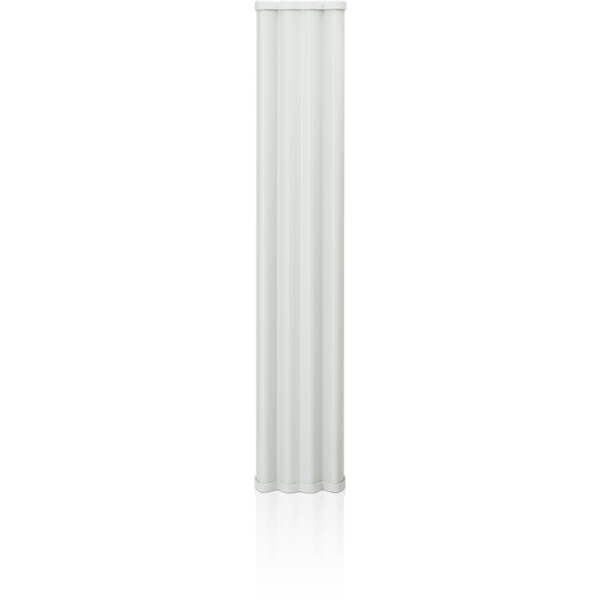

Ubiquiti AirMax 20dBi 5GHz Sector Antenna - AM-5G20-90

AM-5G20-90

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Product Specification

• Dimensions (mm): 700 x 135 x 70

• Weight: 5.9 kg

• Frequency Range: 5.15 - 5.85 GHz

• Gain: 19.4 - 20.3 dBi

• HPOL Beamwidth: 91° (6 dB)

• VPOL Beamwidth: 85° (6 dB)

• Electrical Beamwidth: 4°

• Electrical Downtilt: 2°

• Max. VSWR: 1.5:1

• Wind Survivability: 200 km/h

• Wind Loading: 182 N @ 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 28 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
