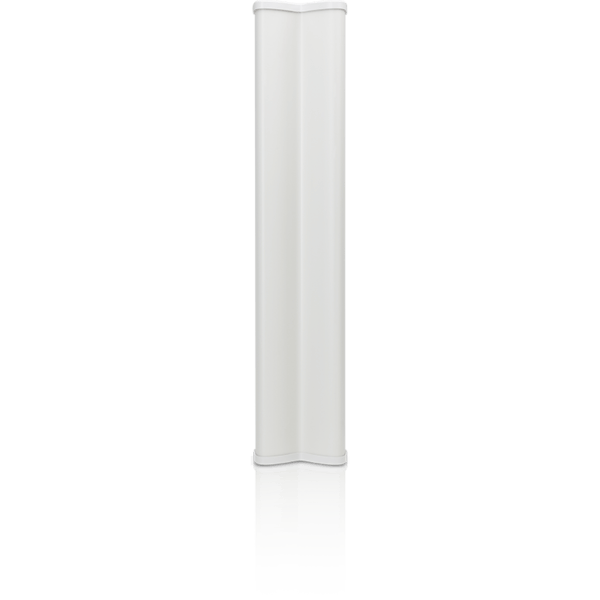

Ubiquiti AirMax-2G15-120 15dBi 2.4GHz Sector Antenna 120º

AM-2G15-120

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Product Specification

• Dimensions (mm): 700 x 145 x 93

• Weight: 4.0 kg

• Frequency Range: 2.3 - 2.7 GHz

• Gain: 15.0 - 16.0 dBi

• HPOL Beamwidth: 123° (6 dB)

• VPOL Beamwidth: 118° (6 dB)

• Electrical Beamwidth: 9°

• Electrical Downtilt: 4°

• Max. VSWR: 1.5:1

• Wind Survivability: 200 km/h

• Wind Loading: 169 N @ 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 28 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
