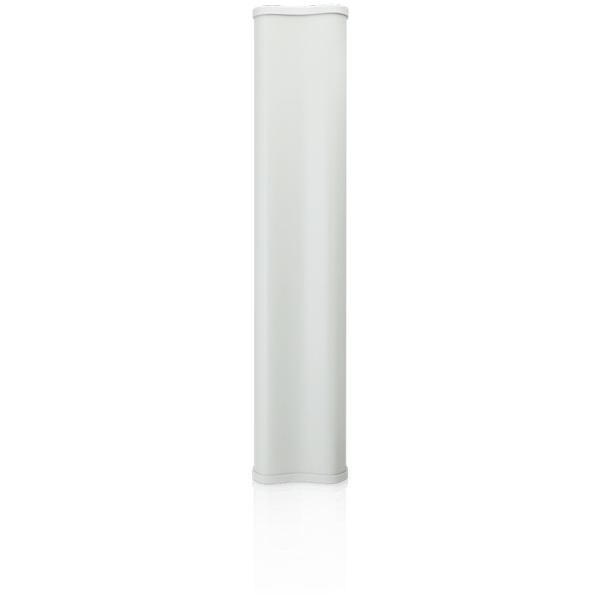

Ubiquiti AirMax-2G16-90 16dBi 2.4GHz Sector Antenna 90º

SKU
AM-2G16-90
117,06 € 95,17 €
Antena Sectorial de Dupla Polarização 2.4GHz e 90 graus de abertura.
EAN
810354020872

Sem stock

Contacte-nos para previsão

AM-2G16-90

airMAX® 2x2 BaseStation Sector Antenna Pair the airMAX® Sector Antenna with a Rocket™M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Product Specification

  • Dimensions (mm): 700 x 145 x 79

  • Weight: 3.9 kg

  • Frequency Range: 2.3 - 2.7 GHz

  • Gain: 16.0 - 17.0 dBi

  • HPOL Beamwidth: 91° (6 dB)

  • VPOL Beamwidth: 90° (6 dB)

  • Electrical Beamwidth: 9°

  • Electrical Downtilt: 4°

  • Max. VSWR: 1.5:1

  • Wind Survivability: 200 km/h

  • Wind Loading: 133.4 N @ 200 km/h

  • Polarization: Dual-Linear

  • Cross-pol Isolation: 28 dB Min.

  • ETSI Specification: EN 302 326 DN2

  • Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
