Ubiquiti AirMax AC 15-17dBi 5GHz 60-120º Sector Antenna
SKU
AM-M-V5G-TI
163,02 €
132,54 €
Ubiquiti AirMax sector antenna Titanium, changeable angle 60°-120°, 15-17dBi, rocket kit.
EAN
810354020940
Sem stock
Contacte-nos para previsão

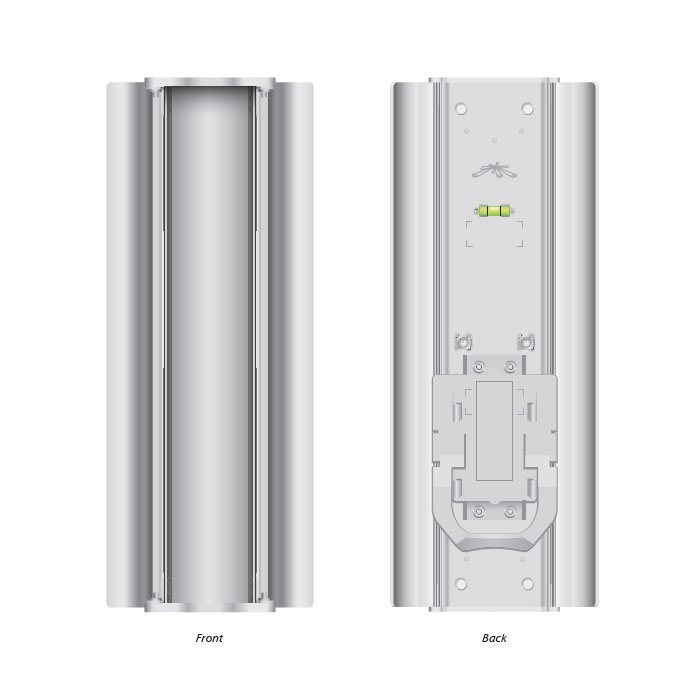

The airMAX Titanium Sector is highlighted by its variable beamwidth configuration, which enhances scalability and streamlines inventory. The configuration setting options include 60°, 90°, and 120°. The antenna is outfitted with dual weatherproof RP-SMA connectors and it can withstand wind speeds up to 125 mph. The antenna is highly resistant to noise interference in co-location deployments as well. For added installation convenience, a Pole Mount Kit is included with this antenna.
| Frequency Range | 5.4 to 5.85 GHz |
| Beamwidth Angles | 60° 90° 120° |
| Gain (Beamwidth Dependent) | 17 dBi at 60° 16 dBi at 90° 15 dBi at 120° |
| Elevation Beamwidth | 8° |
| Electrical Downtilt | 3° |
| Wind Survivability | 125 mph (201 km/h) |
| Wind Loading | 15 lb/f (6.8 kg/f) at 100 mph (161 km/h) |
| Polarization | Dual Linear |
| Cross-Pol Isolation | 25 dB (typical) |
| Front-to-Back Ratio | 30 dB (typical) |
| Maximum VSWR | 1.7:1 |
| RF Connectors | Weatherproof RP-SMA Connectors x 2 |
| Compatible Radios | Rocket M5 Rocket M5 Titanium Rocket M5 GPS |
| Mounting | Pole Mount Kit (included) |
| ETSI Specification | EN 302 326 DN2 |
| Certifications | CE FCC IC |
