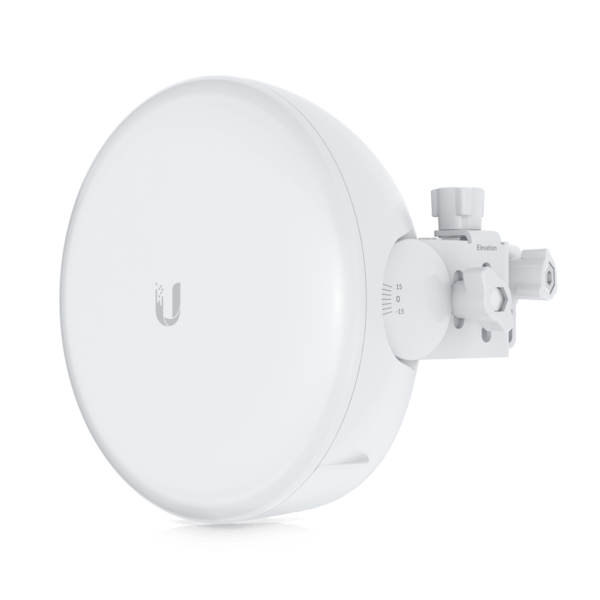

Ubiquiti airMAX GigaBeam Plus 60 GHz Radio

GBE-PLUS

airMAX AC 60 GHz Radio System with True Duplex Gigabit Performance.

GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP™? Mobile app via Bluetooth.

Features:

• Low-Interference 60 GHz Spectrum

• 35 dBi Antenna Gain with Integrated Reflector

• 1.5+ Gbps Bidirectional Throughput with Low Latency

• Long Range, up to 1.5 km

• link.ui.com Planning Support

• Quick Setup Using the UISP™? App via Bluetooth

Product Specification

• Dimensions: Ø155 x 137 mm

• Weight: 1 kg

• Enclosure Materials: UV Resistance Polycarbonate, Stainless Steel

• Mount Materials: Metal

• Wind Loading: 50 N at 200 km/h

• Processor: Quad-Core ARM® Cortex® A7

• Memory: 256 MB DDR3

• Networking Interface: 10/100/1000 Mbps Ethernet RJ45

• Management Interface:

• Ethernet In-Band

• Bluetooth

• RF Connections: Internal

• Max. Power Consumption:v11W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8-)

• Power Supply:

• 24VDC, 0.5A Gigabit PoE Adapter

• 24V, 1A for using Motor Accessory

• Supported Voltage Range: 22 to 26VDC

• ESD/EMP Protection: Air/Contact: ± 24kV

• Operating Temperature: -40 to 60° C (-40 to 140° F)

• Operating Humidity: 5 - 95% Noncondensing

• Certifications: FCC, IC, CE

• Operating Frequency*: 57,000 - 66,000 MHz

• Max. Conducted TX Power: 17 dBm

• Channel Bandwidth: 2160 MHz

• Operating Channels: 58320, 60480, 62640, 64800 MHz

• Antenna Gain: 35 dBi

• Beamwidth:

• HPOL: NaN (The Antenna is Only Vertically Polarized)

• VPOL: 3°

• Elevation: 3°

• Management Radio: 2400 - 2483.5 MHz

• Electrical Downtilt: 0°

* Depends on regulatory region.
