Ubiquiti airMAX NanoBeam AC 2.4Ghz 13dBi

airMAX NanoBeam AC, 2.4 GHz, 13 dBi Station

High-performance NanoBeam design at 2 GHz with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Features:

• New antenna

• Improved design

• Management WiFi Radio/UNMS mobile app

Product Specification

• Dimensions (Mount Included): 189 x 189 x 125 mm

• Weight (Mount Included): 530 g

• Gain: 13 dBi

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor Specs: Atheros MIPS 74Kc, 533 MHz Atheros MIPS 74Kc, 533 MHz

• Memory: 64 MB DDR2

• LEDs: Power, Ethernet, (4) Signal Strength

• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

• Max. VSWR: 1.5:1

• Channel Sizes:

• PtP Mode: 10/20/40 MHz

• PtMP Mode: 10/20/40 MHz

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Max. Power Consumption: 7.5W

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Wind Loading: 45.4 N @ 200 km/h

• Wind Survivability: 200 km/h (125 mph)

• Certifications: CE, FCC, IC

• Mounting:

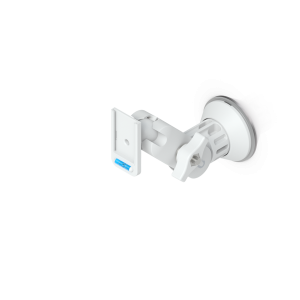

• Pole-Mount (Kit Included)

• Wall-Mount (Not Included)

• ESD/EMP Protection: ± 24kV Contact/Air

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test, IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

• Operating Temperature: -40 to 80° C

• Operating Humidity: 5 to 95% Noncondensing

• Operating Frequency Worldwide: 2412-2472 MHz

• Management Radio Worldwide: 5150 - 5250 MHz
