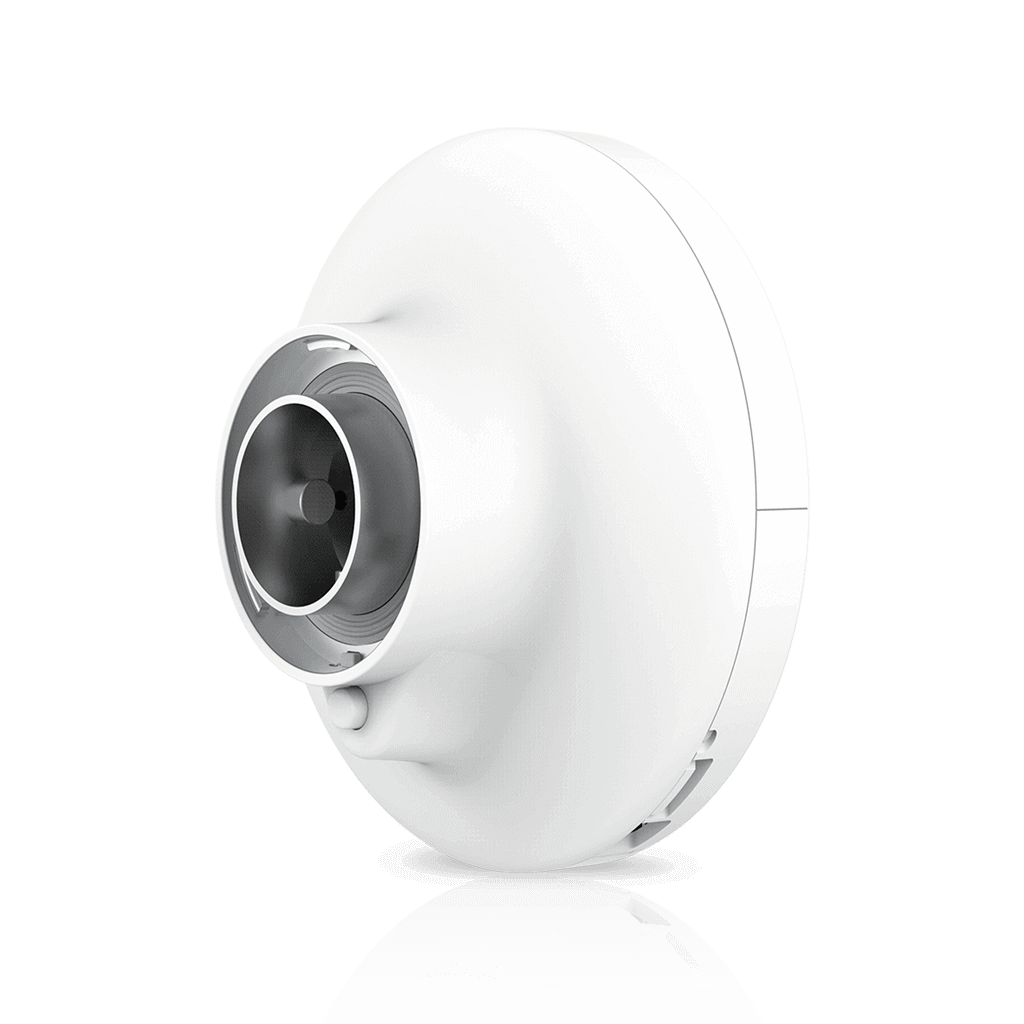

Ubiquiti Airmax PrismStation AC 5Ghz

PS-5AC

Featuring a die-cast aluminum base and interchangeable horn antenna, the PrismStation 5AC with proprietary airMAX ac chipset and dedicated management Wi-Fi isolates beam communications between your devices. Ideal as an AP in crowded RF environments such as urban areas.

Product Specification

• Dimensions: 155 x 155 x 104 mm

• Dimensions Mounting Hardware Only: 83 x 117 x 69 mm

• Weight: 0.77 kg

• Weight Mounting Hardware Only: 0.79 kg

• Networking Interface: (1) 10/100/1000 Ethernet Port

• RF Connector: (1) GPS

• LED: Power

• Max. Power Consumption: 10W

• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)

• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Supported Voltage Range: 20 to 26VDC

• Wind Loading: 31 N @ 200 km/h

• Wind Survivability: 200 km/h

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Mounting: Pole-Mount (Kit Included)

• ESD/EMP Protection: ± 24kV Contact/Air

• Certifications: CE, FCC, IC

• Operating Frequency WorldWide (MHZ): 5150 - 5875

• Management Radio WorldWide (MHZ): 2412 - 2472
