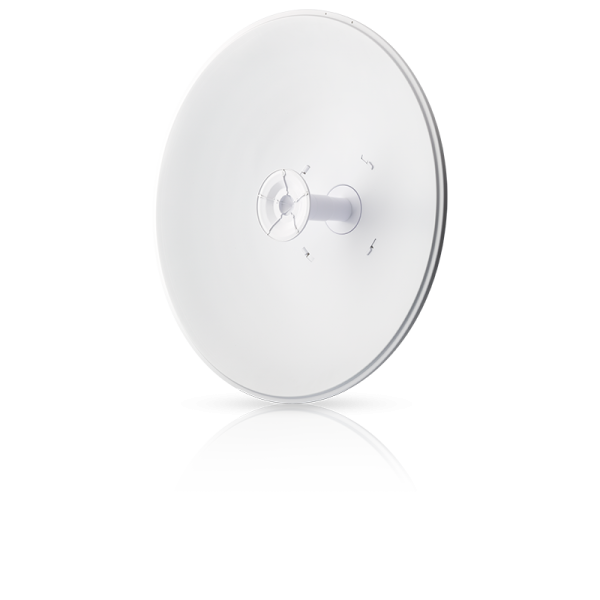

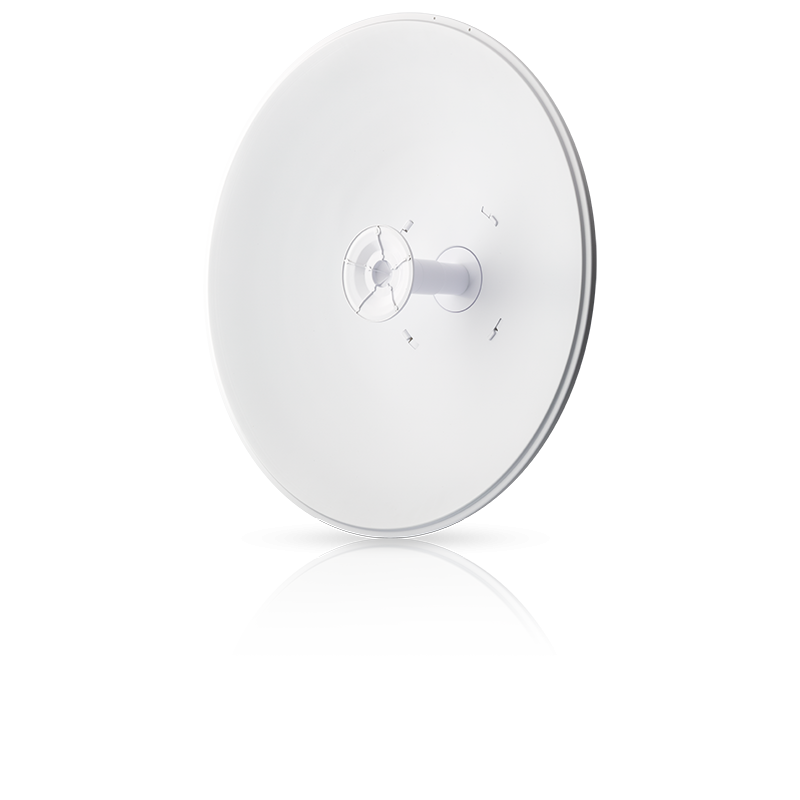

Ubiquiti AIRMAX RD-5G30-LW 5GHz Rocket Dish, 30dBi

RD-5G30-LW

Pair a RocketDish™ antenna with a Rocket® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).

The 5 GHz frequency band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links. However, 5 GHz signals have more difficulty passing through obstacles than lower-frequency signals.

Product Specification

• Dimensions: 650 x 650 x 386 mm

• Weight: 7.4 kg

• Frequency Range: 5.1 - 5.9 GHz

• Gain: 30 dBi

• HPOL Beamwidth: 5.8° (3 dB)

• VPOL Beamwidth: 5.8° (3 dB)

• F/B Ratio: 30 dB

• Max. VSWR: 1.6:1

• Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)

• Wind Survivability: 200 km/h (125 mph)

• Polarization: Dual-Linear

• Cross-pol Isolation: 35 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
