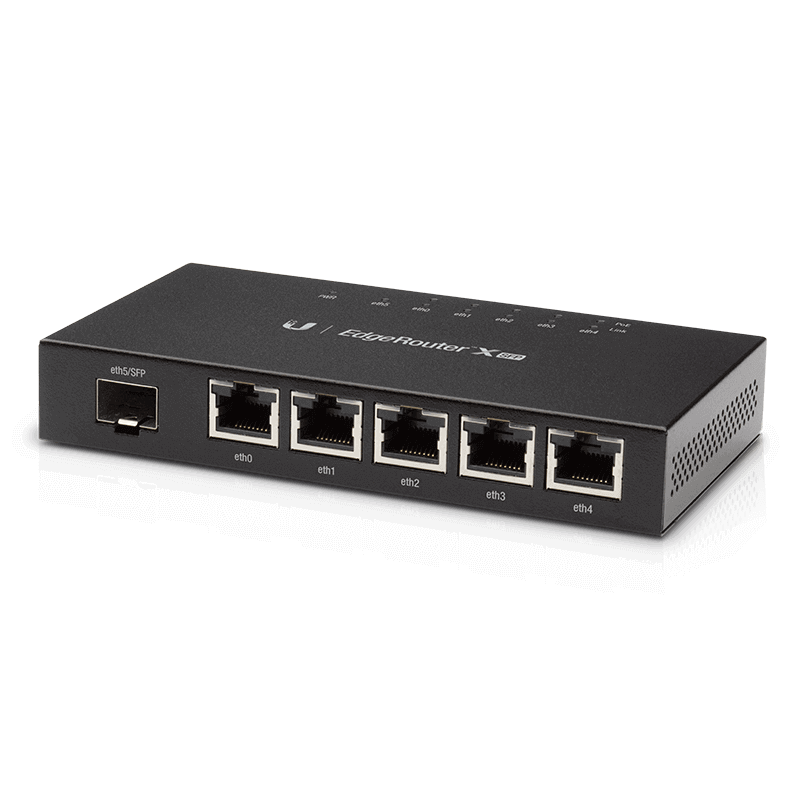

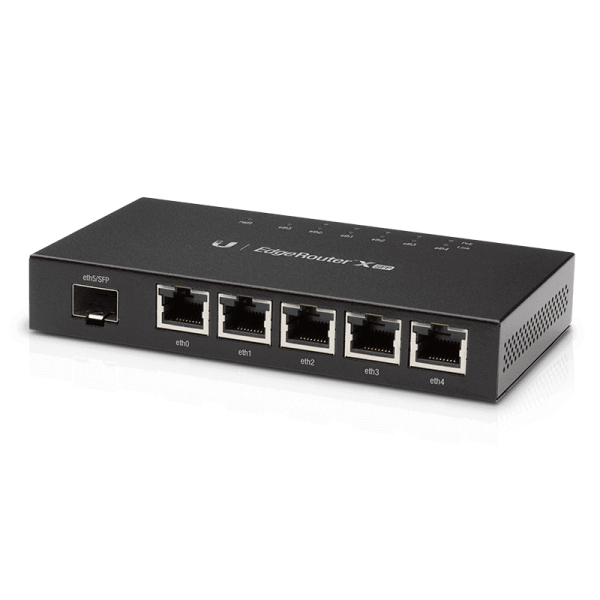

Ubiquiti EdgeRouter ER-X-SFP

ER-X-SFP

The EdgeRouter™ X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor..

Features:

• (5) Gigabit RJ45 ports with passive PoE support

• (1) Gigabit SFP port for backhaul applications

• 130 kpps for 64-byte packets

• 1 Gbps for 1518-byte packets

Product Specification

• Dimensions: 142 x 75 x 23 mm

• Weight: 215 g

• Max. Power Consumption: 5W

• Max. Total PoE Output: 50W @ 24V

• PoE Output: Passive 24V (Pins 4, 5+; 7, 8-)

• Power Input: 24VDC, 2.5A Power Adapter (Included)

• Power Supply: External AC/DC Adapter

• Supported Voltage Range: 9 to 26VDC

• Button: Reset

• Processor: Dual-Core 880 MHz, MIPS1004Kc

• System Memory: 256 MB DDR3 RAM

• Code Storage: 256 MB NAND

• Certifications: CE, FCC, IC

• Wall-Mount: Yes

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -10 to 45° C

• Operating Humidity: 10 to 90% Noncondensing

• Data/PoE Output Port: (5) 10/100/1000 RJ45 Ports

• Data Port: (1) 100/1000 SFP Port

• PoE Out Voltage Range: 22-24VDC

• Max. PoE Wattage Per Data/PoE Output Port: 12W (24V)

• Max. PoE Wattage Combined (All 5 Data Ports): 50W

• PoE Method: Passive
