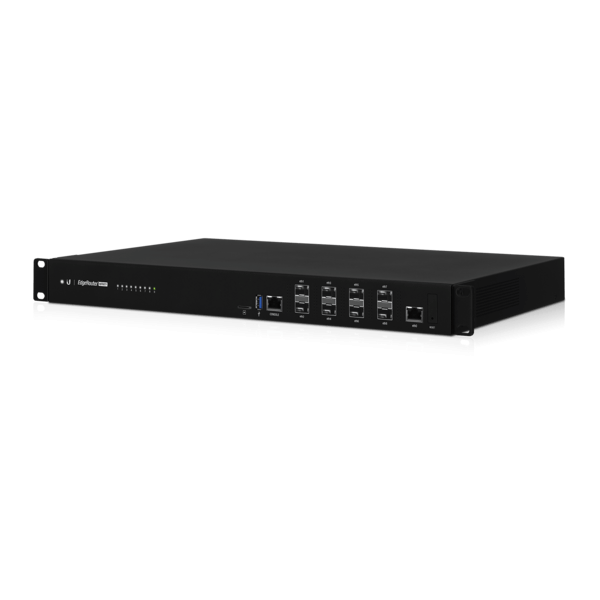

Ubiquiti EdgeRouter Infinity 8-Port 10G SFP+ Router

ER-8-XG

The EdgeRouter Infinity combines 80 Gbps aggregate throughput with price/performance value in a compact rack-mountable form factor. Eight SFP+ ports offer 10G fiber connectivity, and a Gigabit Ethernet RJ45 port offers copper connectivity. The EdgeRouter Infinity includes primary and backup AC/DC power supply modules for redundancy. It supports scalable configuration using EdgeOS or the Ubiquiti Network Management System (UNMS).

Features:

• (8) 10G SFP+ Ports and (1) Gigabit Ethernet RJ45 Port

• Hot-Swappable Modular Power Supplies

• 16-Core, 1.8 GHz Processor

• Rack-mountable

Product Specification

• Dimensions: 442.4 x 285.6 x 43.7 mm

• Weight Without Mount: 4.950 kg

• Weight With Mount: 5.045 kg

• Max. Power Consumption: 100W

• Power Method: Hot-Swappable AC/DC or DC/DC* Power Supply Module

• Power Supply:

• AC/DC Power Supply Module: 100 to 240VAC, 24VDC Output

• DC/DC Power Supply Module: 38 to 54VDC, 24VDC Output

• Supported Voltage Range: AC Input: 100 to 240VAC

• Button: Reset

• Processor: MIPS64 16 Core 1.8 GHz with Hardware Acceleration for Packet Processing

• System Memory: 16 GB DDR4 RAM

• On-Board Flash Storage: 8 MB NOR Flash 4 GB eMMC NAND Flash

• Layer 3 Forwarding Performace:

• Packet Size: 64 bytes  18,000,00 pps

• Packet Size: 1514 Bytes 80 Gbps (line Rate)

• Serial Console Port Interfaces: (1) RJ45 Serial Port

• Data Ports Interfaces:

• (8) SFP+ Ports

• (1) RJ45 Gigabit Ethernet Port

• Mounting: Rack

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -5 to 40° C

• Operating Humidity: 5 - 95% Noncondensing

• Certifications: CE, FCC, IC
