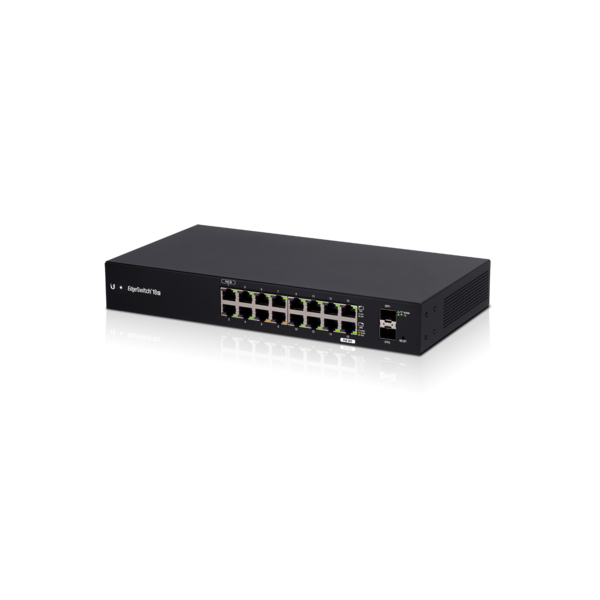

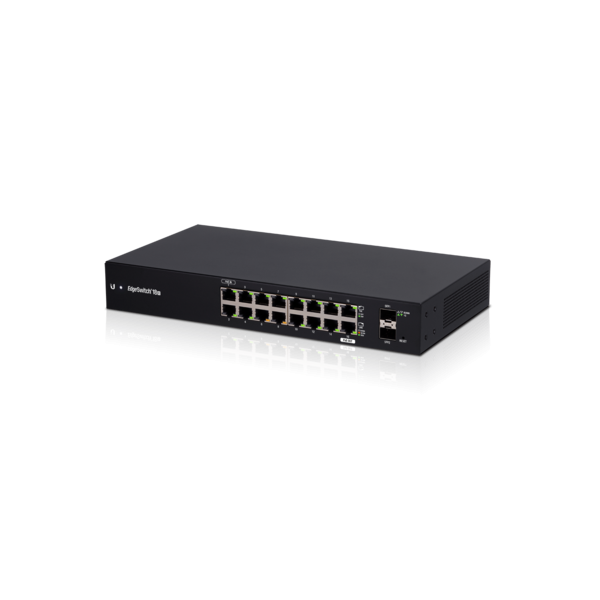

Ubiquiti EdgeSwitch 18X

SKU
ES-18X
180,63 € 146,85 €
(16) Port Gigabit Switch with PoE input on port 1 and PoE passthrough on port 16 + (2) SFP ports
EAN
817882029971

Sem stock

Contacte-nos para previsão

ES-18X

Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through the UISP.

Features:

  • (16) Gigabit RJ45 ports

  • (2) SFP ports

  • Supports PoE passthrough on port 16 (software-selectable)

  • Powered by 24V passive PoE or external 24V AC/DC adapter

  • Wall or rack-mountable (bracket included)

Product Specification

  • Dimensions: 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7")

  • Weight Without Mount: 1.15 kg

  • Weight With Mount: 1.43 kg

  • Enclosure Material: Metal

  • Mount Material Metal: Metal

  • Processor: MIPS 4Kc, 500 MHz

  • System Memory: 128 MB DDR3

  • On-Board Flash Storage: SPI 16 MB

  • Total Non-Blocking Throughput 18 Gbps

  • Switching Capacity: 36 Gbps

  • Forwarding Rate: 26.78 Mpps

  • Max. Power Consumption: 14W (Excludes PoE Output)

  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 8 kV

  • Power Method External:

    • AC/DC Adapter

    • 24V Passive PoE

  • Power Supply:

    • 24VDC, 1.0A Power Adapter (Included)

    • 24V Passive PoE

  • Supported Voltage Range: 9 - 30VDC

  • Networking Interfaces:

    • (16) 10/100/1000 Mbps Ethernet RJ45 Ports

    • (2) 1 Gbps SFP Ports

  • PoE Interfaces: (1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-)

  • Management Interface: Ethernet In-Band

  • Passive PoE Max Wattage per Port: 15W

  • Passive PoE Voltage Range: 24V

  • Operating Temperature: -10 to 50° C (14 to 122° F)

  • Operating Humidity: 10 - 90% Noncondensing

  • Certifications:CE, FCC, IC

  • Mode: Layer 2 Ethernet Switch

  • VLAN: 4K VLANs

  • QoS: (16) Priority Queues per User Port and Traf c Classi cation

  • Jumbo Frame: 10 KB

  • PoE: Enable/Disable Passive PoE

  • Other: TFTP Recovery

  • Ubiquiti Specic: Features Ubiquiti Discovery

  • Minimum Software Requirements: Web Browser (Chrome Recommended)
