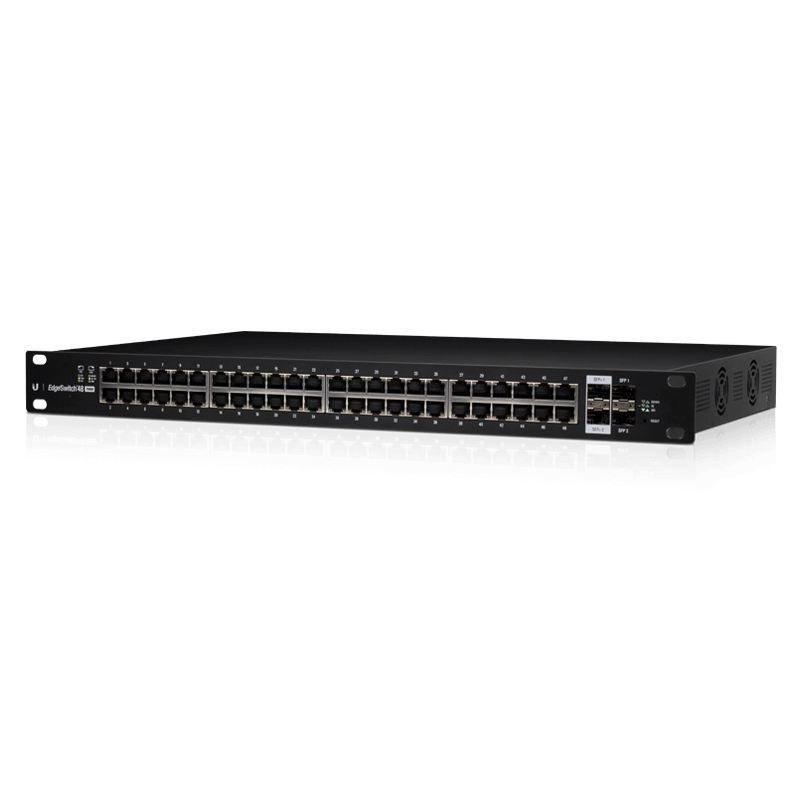

Ubiquiti EdgeSwitch 48 750W 2SFP

ES-48-750W

Advanced Switching Technology for the Masses

Features:

• (48) Gigabit RJ45 Ports

• (2) SFP+ Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Maximum Power Consumption: 750W

• Supports POE+ IEEE 802.3at/af and 24V Passive PoE

• Rackmountable

Product Specification

• Weight: 6.5 kg

• Total Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Max. Power Consumption:

• Includes PoE Output: 750W

• Excludes PoE Output: 64W

• Power Method: 100-240VAC/50-60 Hz, Universal Input

• Power Supply: AC/DC, Internal, 750W DC

• Networking Interfaces:

• (48) 10/100/1000 Mbps RJ45 Ethernet Ports

• (2) 1/10 Gbps SFP+ Ethernet Ports

• (2) 1 Gbps SFP Ethernet Ports

• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band

• Certifications: CE, FCC, IC

• Rackmount: Yes, 1U High

• ESD/EMP Protection: Air: ±24 kV Contact: ±24 kV

• Operating Temperature: -5 to 40° C

• Operating Humidity: 5 to 95% Noncondensing

• Shock and Vibration: ETSI300-019-1.4 Standard

• PoE Interfaces:

• POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

• 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

• Max. PoE+ Wattage per Port by PSE: 34.2W

• Voltage Range 802.3at Mode: 50–57V

• Max. Passive PoE Wattage per Port: 17W

• 24V Passive PoE Voltage Range: 20-27V
