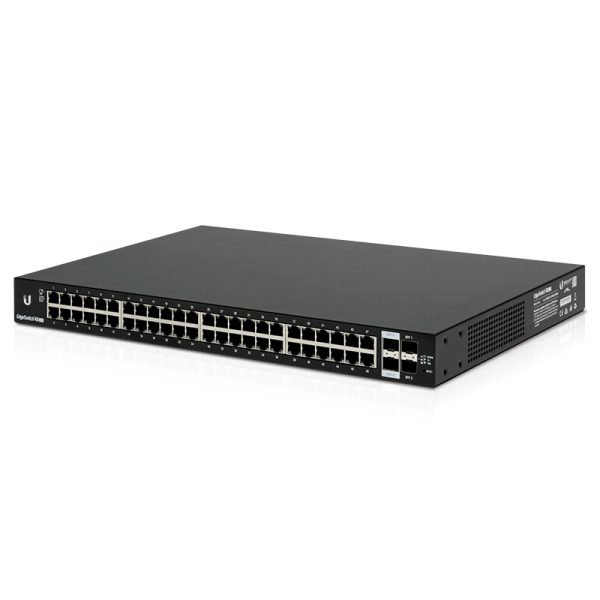

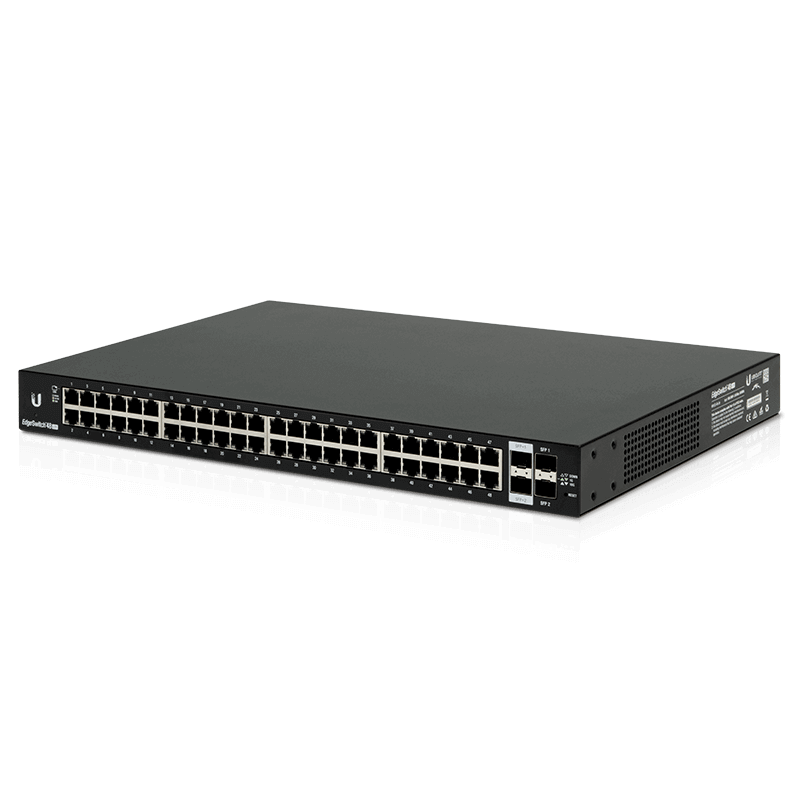

Ubiquiti EdgeSwitch 48 Lite

ES-48-LITE

Managed Gigabit Switches with SFP+

Features:

• Non-Blocking Throughput Switching Performance

• Gigabit Ethernet RJ45 Ports

• SFP+/SFP Fiber Connectivity Options

Product Specification

• Dimensions: 443 x 43 x 286 mm

• Weight Rack-Mount Brackets Included: 3.65 kg

• Weight Rack-Mount Brackets Excluded: 3.56 kg

• Total Non-Blocking Throughput: 70 Gbps

• Switching Capacity: 140 Gbps

• Forwarding Rate: 104.16 Mpps

• Max. AC Power Consumption: 56W

• Power Method:

• AC: 100-240VAC/50-60 Hz, Universal Input

• DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector

• Power Supply: AC/DC, Internal, 56W DC

• Networking Interfaces:

• (48) 10/100/1000 Mbps RJ45 Ethernet Ports

• (2) 1/10 Gbps SFP+ Ethernet Ports

• (2) 1 Gbps SFP Ethernet Ports

• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band

• Certifications: CE, FCC, IC

• Rackmount: Yes, 1U High

• ESD/EMP Protection: Air: ±24 kV Contact: ±24 kV

• Operating Temperature: -5 to 40° C

• Operating Humidity: 5 to 95% Noncondensing

• Shock and Vibration: ETSI300-019-1.4 Standard
