Ubiquiti EdgeSwitch 4X10G 12SFP

ES-16-XG

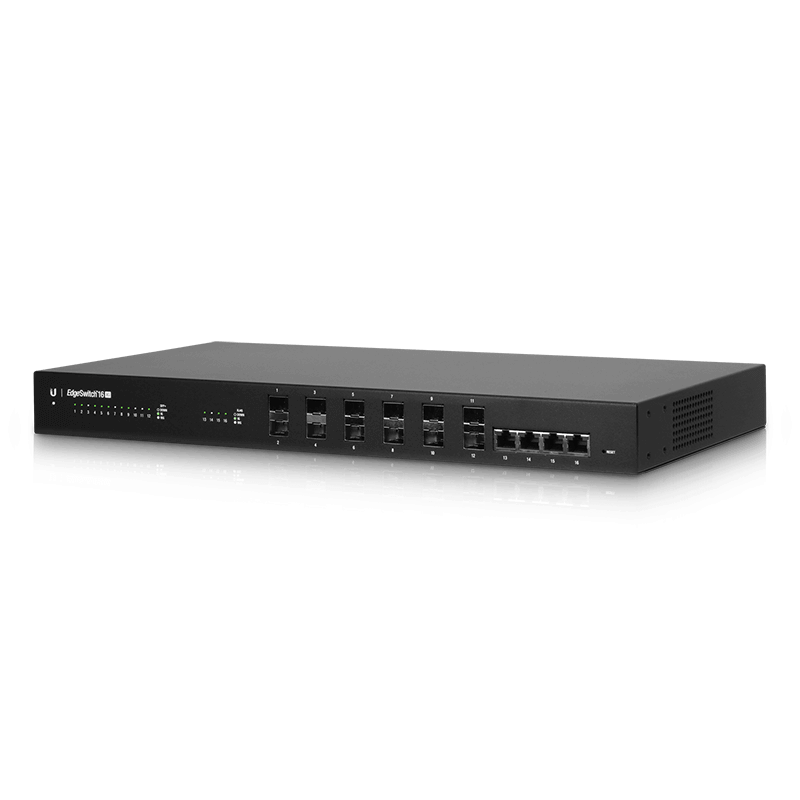

The ES-16-XG is a fully managed, carrier-class 10 Gigabit aggregation switch with twelve 10G SFP+ ports and four 10G RJ45 ports. The ES-16-XG provides up to 160 Gbps total, non-blocking line rate for concurrent, full-capacity support of up to sixteen 10G switches and devices.

Features:

• (12) SFP+ Ports

• (4) 10G RJ45 Ports

• (1) RJ45 Serial Console Port

• Non-Blocking Throughput: 160 Gbps

• Switching Capacity: 320 Gbps

• Forwarding Rate: 238.10 Mpps

• Rack Mountable with Rack-Mount Brackets (Included)

• DC Input Option (Redundant or Stand-Alone)

Product Specification

• Dimensions: 443 x 221 x 43 mm

• Weight Rack-Mount Brackets Included: 2.71 kg

• Weight Rack-Mount Brackets Excluded: 2.62 kg

• Total Non-Blocking Throughput: 160 Gbps

• Max. DC Power Consumption: 36W (excludes SFP/SFP+ module)

• Power Method:

• AC 100-240VAC/50-60 Hz, Universal Input

• DC 56W, 25 to 16V, with 2.5 mm, DC Power Inline Connector

• Power Supply: AC/DC, Internal, 56W DC

• Supported Voltage Range: 100 to 240VAC, 25 to 16VDC

• Rack-Mount: Yes, 1U High

• Networking Interfaces: (12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports

• Management Interface: (1) RJ45 Serial Port, Ethernet In-Band

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 40° C (23 to 104° F)

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
