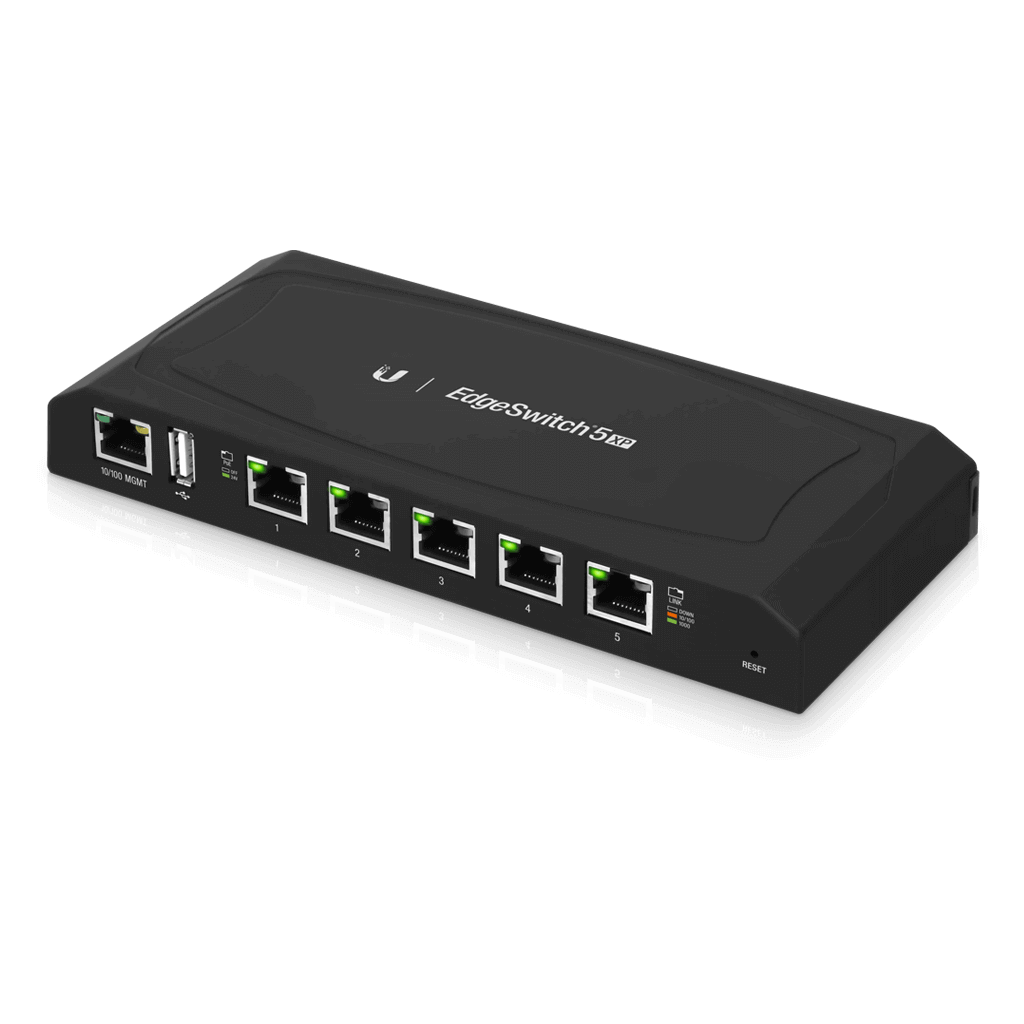

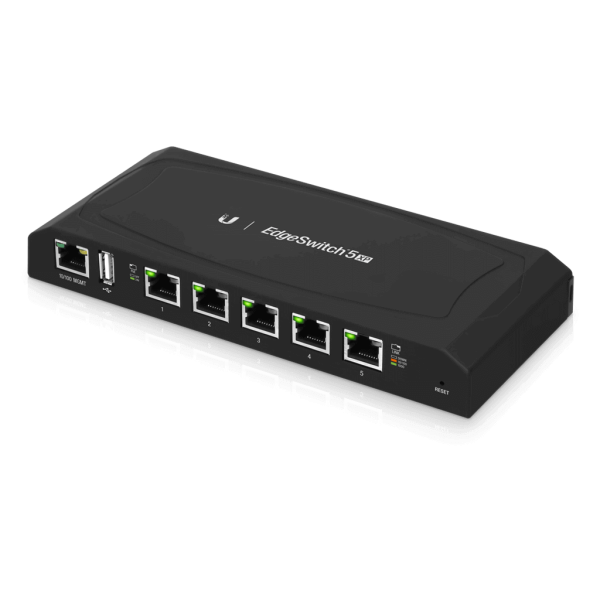

Ubiquiti EdgeSwitch 5XP POE

ES-5XP

EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support. The EdgeSwitch 5XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

Features:

• 5 Gigabit PoE Ports

• 24V Configurable Passive PoE

• EdgeSwitch XP Configuration Interface

• Wall-Mountable

Product Specification

• Dimensions: 197 x 87.5 x 27.3 mm

• Weight: 250 g

• Power Input: 24VDC, 2.5A Power Adapter (Included)

• Max. Power Consumption: 60 W

• PoE Out Voltage Range: 22-24VDC

• Max. PoE Wattage Per Data Port: 11.5 W

• ESD Rating: 24 kV Air / 24 kV Contact

• PoE Method: Passive

• Button: Reset

• USB Port: 2.0 Type A (Reserved for Future Use)

• Processor: MIPS 24K, 400 MHz

• System Memory: 64 MB

• Code Storage: 8 MB

• Certifications: CE, FCC, IC

• Wall-Mount: Yes

• Operating Temperature: -25 to 55°C

• Operating Humidity: 90% Non-Condensing

• Management Port: N/A

• Data Ports: Off/24V

• Management Por Leds: Power /Link/Activity

• Data Ports Leds: PoE, Speed/Link/Activity

• Management Port: (1) 10/100 Ethernet Port

• Data Ports: (5) 10/100/1000 Ethernet Ports
