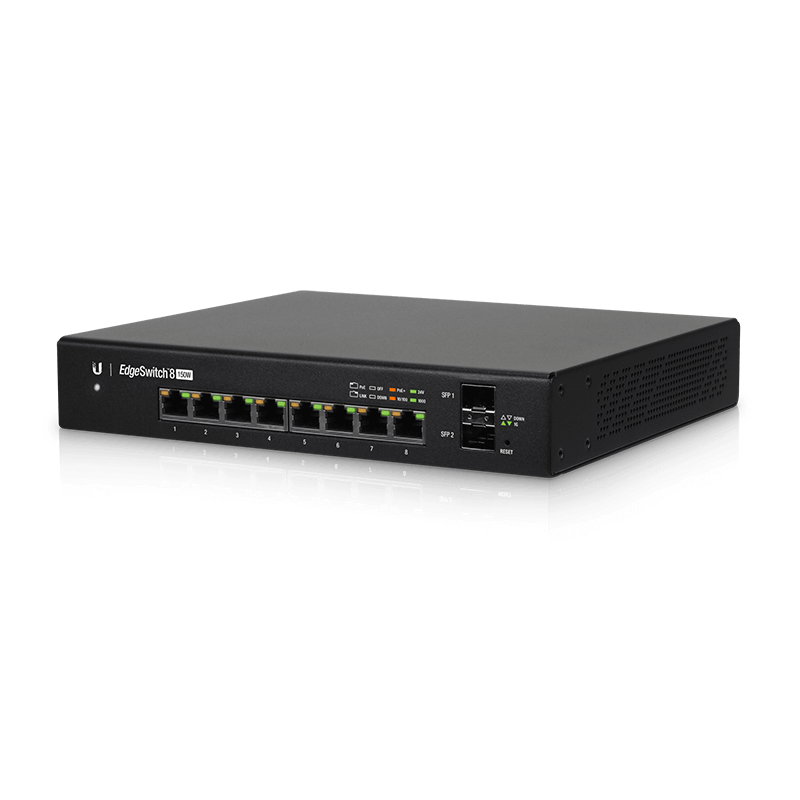

Ubiquiti EdgeSwitch 8 150W 2SFP

ES-8-150W

The EdgeSwitch ES-8-150W is a fully managed, high performance PoE+ Gigabit switch with two SFP ports, and 10 Gbps total, non-blocking line rate. In addition to the internal 150W AC/DC PSU, the ES-8-150W features a DC input for optional stand-alone DC powering or redundant power backup. Power and connect your PoE devices with the flexibility of both auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE.

Product Specification

• Dimensions: 204 x 43 x 235 mm

• Weight Without Mount Brackets: 1.72 kg

• Weight With Mount Brackets: 1.8 kg

• Total Non-Blocking Throughput: 10 Gbps

• Switching Capacity: 20 Gbps

• Forwarding Rate: 14.88 Mpps

• Max. Power Consumption: 150W (Includes PoE Output), 20W (Excludes PoE Output)

• Power Method:

• AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input

• DC: 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input

• Power Supply: AC/DC, Internal, 150W DC

• LEDs Per Port:

• RJ45 Data Ports: PoE, Speed/Link/Activity

• SFP Data Ports: Speed/Link/Activity

• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports

• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band

• Certifications: CE, FCC, IC

• Wallmount: Yes

• ESD/EMP Protection: Air: ±24 kV Contact: ±24 kV

• Operating Temperature:

• Internal AC/DC @ 150W: -25 to 45° C

• Internal AC/DC @ 100W: -25 to 55° C

• External DC: -25 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Shock and Vibration: ETSI300-019-1.4 Standard

• PoE Interfaces:

• POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

• 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

• Max. PoE+ Wattage per Port by PSE: 34.2W

• Voltage Range 802.3at Mode: 50–57V

• Max. Passive PoE Wattage per Port: 17W

• 24V Passive PoE Voltage Range: 20-27V
