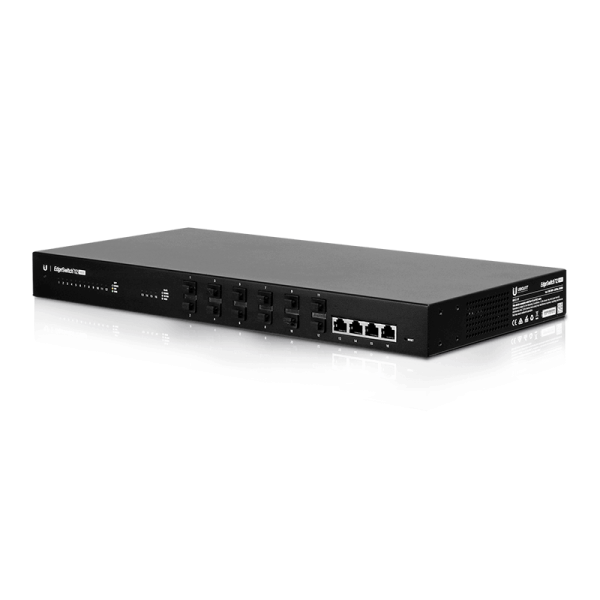

Ubiquiti EdgeSwitch Fiber 12 ports 4 x RJ45

ES-12F

The EdgeSwitch ES-12F is a fully managed, high-performance Gigabit switch providing up to 12 fiber connectivity options for your growing networks.

Features:

• (12) Gigabit SFP Ports

• (4) Gigabit RJ45 Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 16 Gbps

• Switching Capacity: 32 Gbps

• Forwarding Rate: 23.81 Mpps

• Maximum AC Power Consumption: 56W

• Rackmountable with Rack-Mount Brackets (Included)

• DC Input Option (Redundant or Stand-Alone)

Product Specification

• Dimensions: 443 x 221 x 43 mm

• Weight Rack-Mount Brackets Included: 2.68 kg

• Weight Rack-Mount Brackets Excluded: 2.59 kg

• Enclosure Characteristics: SGCC Steel

• Total Non-Blocking Throughput: 16 Gbps

• Switching Capacity: 32 Gbps

• Forwarding Rate: 23.81 Mpps

• Max. AC Power Consumption: 56W

• Power Method:

• AC: 100-240VAC/50-60 Hz, Universal Input

• DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector

• Power Supply: AC/DC, Internal, 56W DC

• Networking Interfaces:

• (8) 100/1000 Mbps SFP Ethernet Ports

• (4) 1000 Mbps SFP Ethernet Ports

• (4) 10/100/1000 Mbps RJ45 Ethernet Ports

• Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band

• Certifications: CE, FCC, IC

• Rackmount: Yes, 1U High

• ESD/EMP Protection: Air: ±24 kV Contact: ±24 kV

• Operating Temperature: -5 to 40° C

• Operating Humidity: 5 to 95% Noncondensing

• Shock and Vibration: ETSI300-019-1.4 Standard
