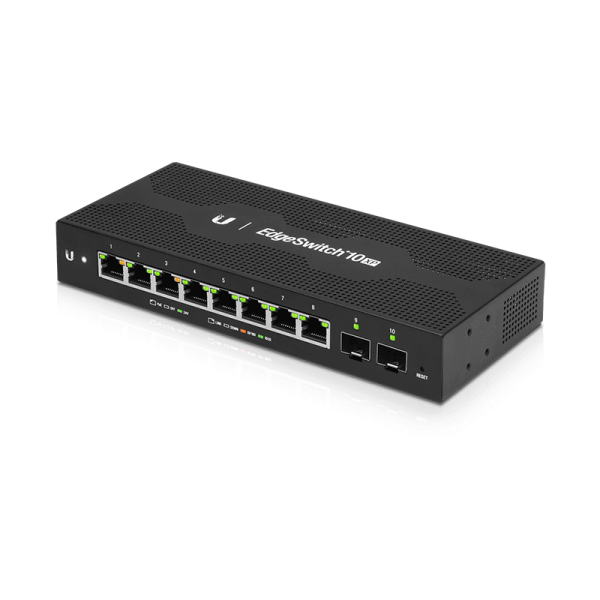

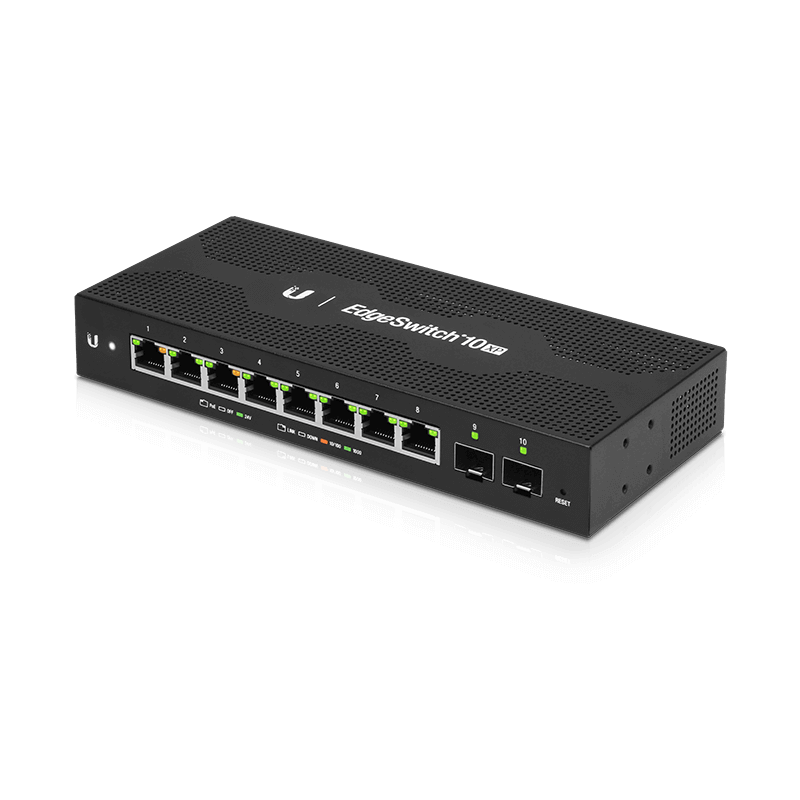

Ubiquiti EdgeSwitch Gigabit with 8 PoE and 2 SFP

SKU
ES-10XP
125,47 € 102,01 €
8-Port Gigabit Switch with PoE output
EAN
817882025218

Sem stock

Contacte-nos para previsão

ES-10XP

Optimized for WISP deployments, the EdgeSwitch® 10XP is a managed PoE switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™).

Features:

  • (8) 10/100/1000 Mbps ethernet ports and (2) SFP ports

  • Supports 24V passive PoE output on all RJ45 ports

  • Powered by external AC/DC adapter

  • DC jack supports battery backup with EdgePower™ (sold separately)

Product Specification

  • Dimensions: 207 x 31.1 x 90 mm

  • Weight: 500 g

  • Total Non-Blocking Throughput: 10 Gbps

  • Switching Capacity: 20 Gbps

  • Forwarding Rate: 14.88 Mpps

  • Max. Power Consumption Excluding PoE Output: 8W

  • Power Method: 24VDC, 2.5A

  • Supported Voltage Range: 9 - 30VDC, 5A

  • Power Supply: 24VDC, 2.5A Power Adapter (Included)

  • Networking Interfaces:

    • (8) 10/100/1000 Mbps RJ45 Ports

    • (2) 1 Gbps SFP Ports

  • Management Interface: Ethernet In-Band

  • Certifications: CE, FCC, IC

  • Rackmount: Yes (not included, model ER-RMKIT)

  • ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV

  • Operating Temperature: -10 to 50° C

  • Operating Humidity: 5 to 95% Noncondensing

  • Shock and Vibration: ETSI300-019-1.4 Standard

  • PoE Interface: (8) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

  • Max. Passive PoE Wattage per Port: 15W

  • 24V Passive PoE Voltage Range: 24V
