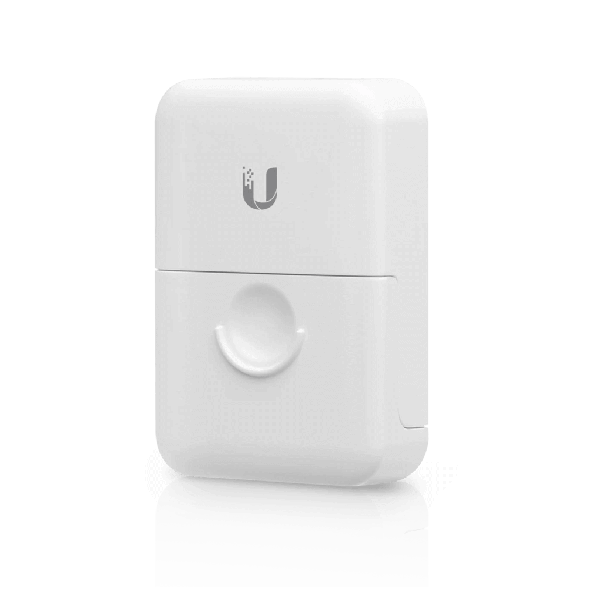

Ubiquiti Ethernet Surge Protector

ETH-SP-G2

Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti® airMAX® devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Features:

• Low-Cost Protection and Fast Installation

• Protects Outdoor Ethernet Devices

• Compatible with 10/100/1000 Mbps Networks

Product Specification

• Dimensions: 91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28")

• Weight: 80 g

• Interface Connections: (2) RJ45 Female Connectors

• ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs

• DC Spark-Over Voltage: 90V @ 100V/s

• Maximum Impulse Spark-Over Voltage: 700V @ 1kV/µs

• Discharge Current: 10kA+

• Maximum Insulation Resistance: 1G ohm @ 50V

• Maximum Capacitance: 1.0 pF @ 1 MHz

• Data Line Protection: RJ45 10/100/1000 Ethernet

• IEEE 802.3af PoE Support: Yes

• Shock and Vibration Certification: ETSI300-019-1.4 Standard

• Operating Temperature: -30 to 65° C

• Operating Humidity: 10 to 90% Noncondensing
