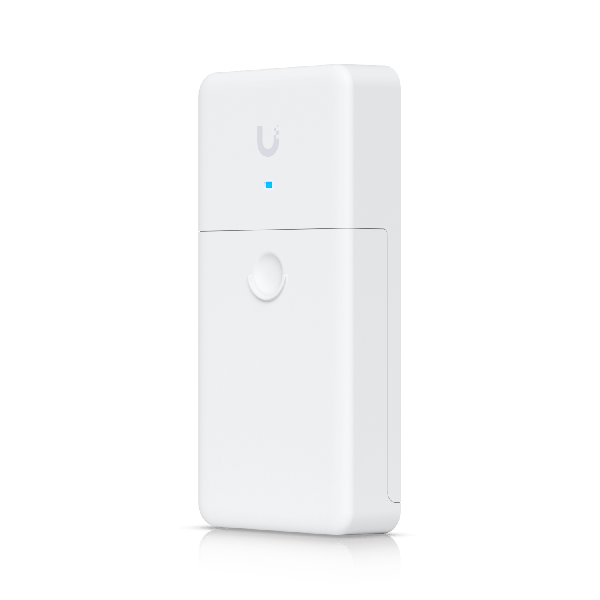

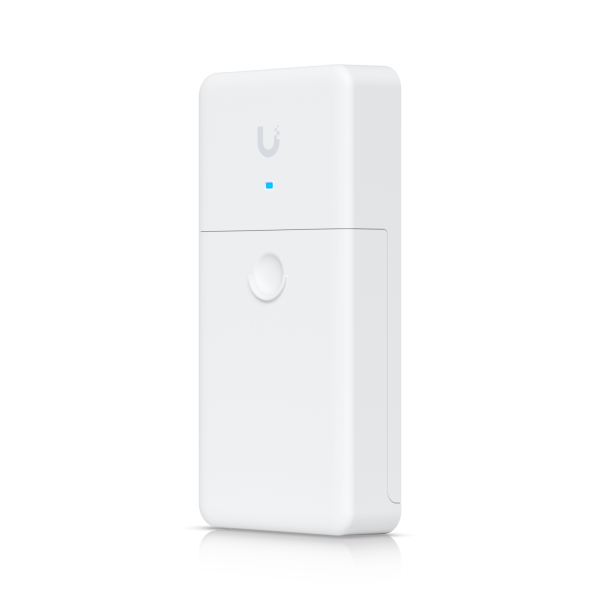

Ubiquiti FiberPoE Optical Data Transport Gen2

F-POE-G2

The FiberPoE™ connects remote PoE devices and provides data and power using fiber and DC cabling.

Overcome PoE limitations with the next-generation FiberPoE™, model F-POE-G2. The FiberPoE Gen 2 is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE Gen 2 provide significant EMI and ESD protection over typical PoE installations. The FiberPoE Gen 2 also features a durable, weatherproof form factor and enhanced surge protection.

• Reliable Long-Distance Gigabit PoE Runs

• Enhanced ESD Protection and EMI Reduction

• Dependable 24V/50V Passive PoE Transport

Product Specification

• Dimensions: 196.4 x 93.5 x 32.4 mm

• Weight: 288 g

• Enclosure: White Polycarbonate

• Interface Connections:

• (1) 1 Gbps SFP Port

• (1) DC Terminal Block

• (1) DC RJ45 Port DC Injection

• (1) 1000 Mbps Ethernet PoE Port

• 10/100 Mbps Ethernet not supported

• Typical Power Consumption: 1.5W

• Power Method:

• DC Terminal Block, 2-Wire, 24VDC or 50VDC

• DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough

• PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough

• PoE Output: PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE

• DC Output: Terminal Block, 2-Wire (24VDC or 50VDC)

• Input DC Voltage: 16 to 57V

• Surge Protection: Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port

• LED:

• White: Power On

• Blue: Connected

• Blue (Flashing): Activity

• Operating Temperature: -40 to 60° C (May be further restricted by the operating temperature range of the SFP module being used)

• Operating Humidity: 10 to 95% Noncondensing

• ESD/EMP Protection: ± 24kV Contact / Air for Ethernet

• Certifications: CE, FCC, IC
