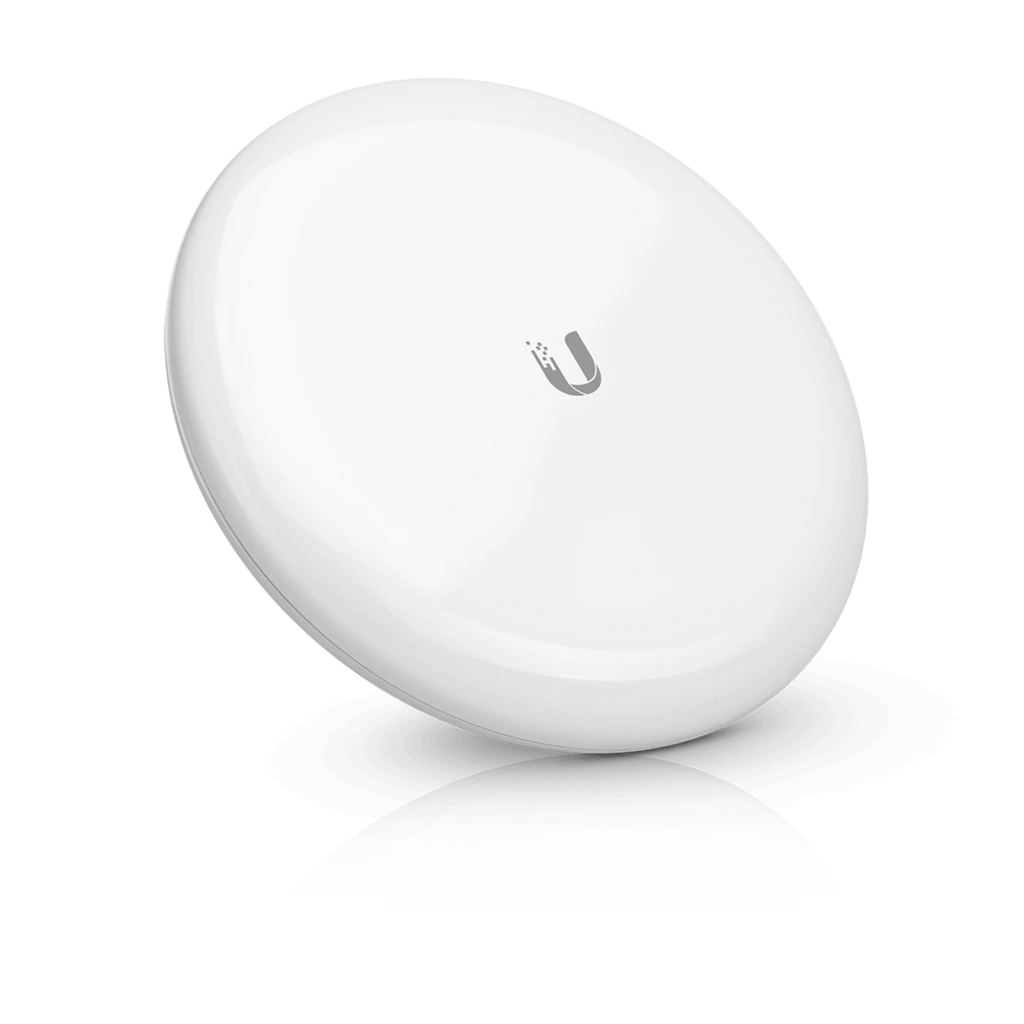

Ubiquiti GigaBeam airMAX AC 60 GHz Radio (GBE)

GBE

airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput

The GigaBeam is a 60 GHz radio designed for low-interference and high-throughput connectivity. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

Features:

• 60 GHz radio with 5 GHz radio backup

• Low-interference 60 GHz spectrum

• Up to 1+ Gbps with low latency

• 2.4 GHz management radio

• Full bandwidth support: 2.16 GHz

Product Specification

• Dimensions: 140 x 140 x 44 mm

• Weigh: 376 g

• Enclosure: UV-Resistant Polycarbonate

• Gain: 5 GHz 10 dBi, 60 GHz 17.2 dBi

• Networking Interface: 10/100/1000 Ethernet Port, Wi-Fi for Management

• Max. Power Consumption: 11W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8-)

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Mounting: Pole-Mount (Kit Included), Wall-Mount (Not Included)

• ESD/EMP Protection: ± 24kV Contact/Air

• Operating Temperature: -40 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• Max. Conducted TX Power: 5/60 GHz Combined 25 dBm

• Channel Bandwidth: 60 Ghz 2160 Mhz, 5 Ghz 20/40/80 Mhz

• Operating Frequency Worldwide:

• 5180 – 5875 MHz

• 57,000 - 66,000 MHz

• Management Radio Worldwide: 2412 - 2472 MHz

• OS: airOS®

• Operating Modes: PtP, PtMP (Future Firmware Upgrade)

• Ubiquiti Specic Features: Integrated 60 GHz and 5 GHz Radios, Discovery Protocol

• Security: WPA2 AES Only

• Dashboard: Yes

• Wireless Settings: Yes

• Network Settings: Yes

• System: Yes

• Services: UNMS, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery

• Tools: Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test

• Minimum Software Requirements: Any Modern Web Browser
