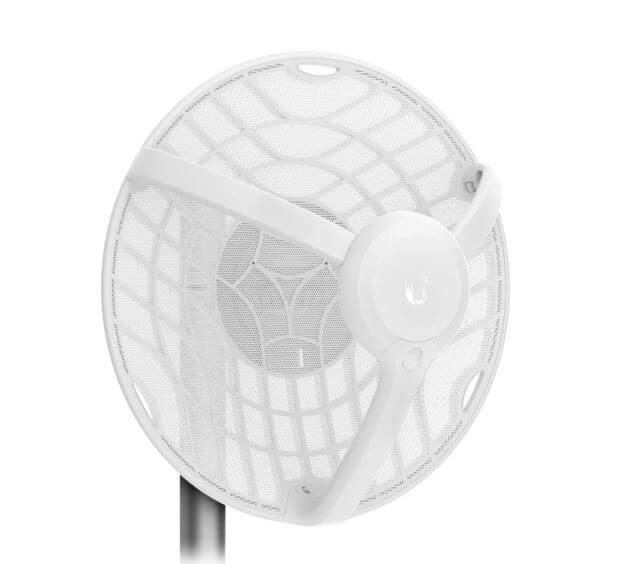

Ubiquiti GigaBeam Long Range airMAX AC 60 GHz Radio (GBE-LR)

GBE-LR

airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput and Up to 2 km Range

Featuring a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.

Features:

• 60 GHz radio with 5 GHz radio backup

• Low-interference 60 GHz spectrum

• Up to 1+ Gbps with low latency

• Long-range performance

• 2.4 GHz management radio

• Full bandwidth support: 2.16 GHz

Product Specification

• Dimensions: 415 x 415 x 303 mm

• Weight Without Mount: 1.4 kg

• Weight With Mount: 1.8 kg

• Enclosure: Aluminum, UV-stabilized Polycarbonate

• Antenna Gain: 5 Ghz 11dBi | 60 Ghz 38 dBi

• Networking Interface: (1) 10/100/1000 Mbps Ethernet Port

• Max. Power Consumption: 11W

• Power Method: Passive PoE, Pins 4, 5+ and 7, 8-

• Power Supply: 24VDC, 0.5A Gigabit PoE Adapter (Included)

• Voltage Range: +22 to +26VDC

• LEDs: Power/Ethernet/5G/60G

• Wind Loading: 56 N @ 200 km/h

• Wind Survivability: 200 km/h

• Mounting: Pole Mount (Included)

• ESD/EMP Protection: ± 24kV Contact/Air

• Operating Temperature: -40 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: FCC, IC, CE

• Max. Conducted TX Power: 5/60 GHz Combined 25 dBm

• Channel Bandwidth: 60 Ghz 2160 Mhz, 5 Ghz 20/40/80 Mhz

• Operating Frequency Worldwide:

• 5180 – 5875 MHz

• 57,000 - 66,000 MHz

• Management Radio Worldwide: 2412 - 2472 MHz
