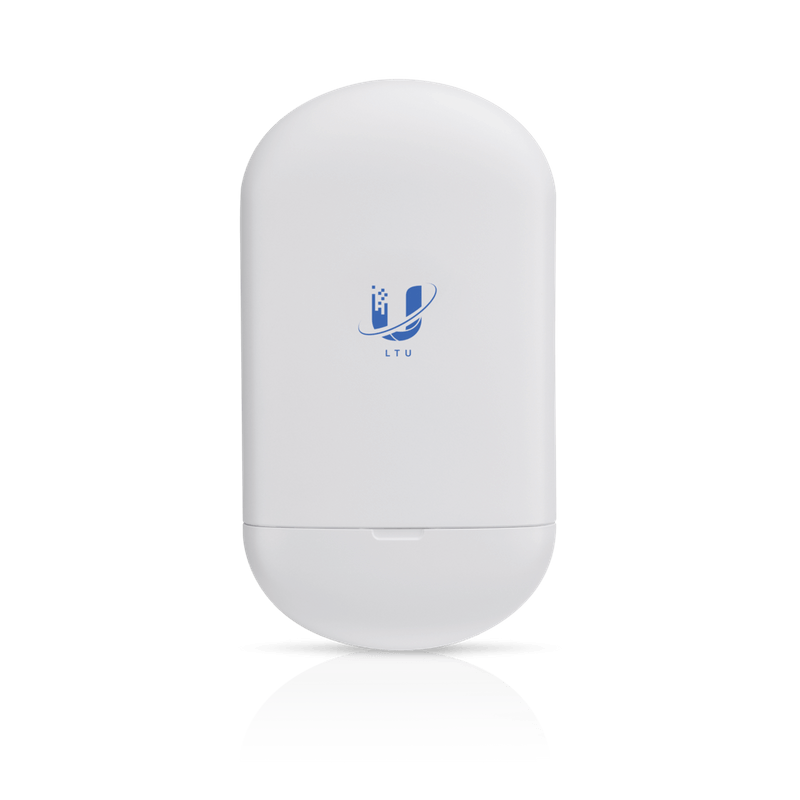

Ubiquiti LTU-Lite, 5GHz LTU

LTU Lite

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Features:

• PtMP CPE

• 1024 QAM

• 10/20/30/40/50 MHz channel bandwidth

• Central configuration management from AP side

• Frequency split

• Auto power adjustments

• Router mode support

Functions in a PtMP environment with the LTU-Rocket as the basestation

Product Specification

• Dimensions: 153 x 84 x 39.5 mm

• Weight: 250 g

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Enclosure: Outdoor UV Stabilized Plastic

• Max. Power Consumption: 8,5W

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)

• Voltage Range: 22 -26V

• Max. Conducted TX Power: 22 dBm (per Chain)

• Gain: 13 dBi

• Cross-pol Isolation: 20 dB Minimum

• Max. VSWR: 1.8:1

• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

• Mounting: Pole-Mount Wall Mount (Kit Included)

• Wind Loading: 20 N @ 200 km/h

• Wind Survivability: 200 km/h

• ESD/EMP Protection: ± 24kV Contact/Air

• Operating Temperature: -40 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• Operating Frequency EU:

• 2400 -2483.5 MHz

• 5150 -5875 MHz
