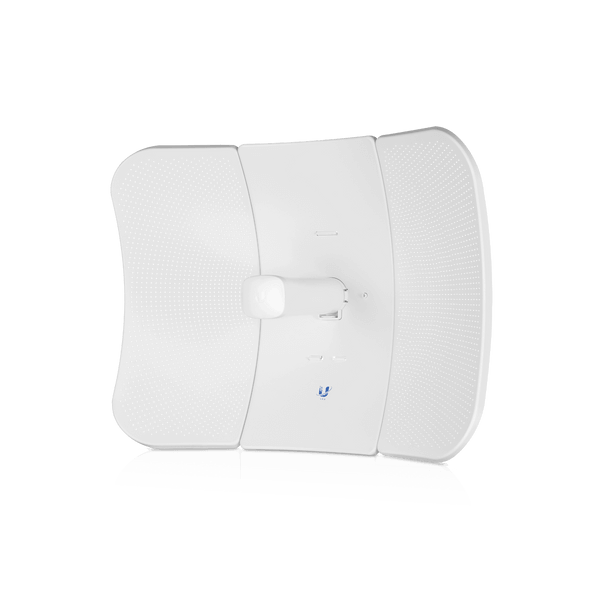

Ubiquiti LTU-LR, 5GHz LTU

LTU LR

5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).

Features:

• PtMP CPE

• 1024 QAM

• 10/20/30/40/50 MHz channel bandwidth

• Central configuration management from AP side

• Frequency split

• Auto power adjustments

• Router mode support

• Range up to 30km

Functions in a PtMP environment with the LTU-Rocket as the basestation

Product Specification

• Dimensions: 512.5 x 385.75 x 258.3 mm

• Weight: 1.360 kg

• Weight with Mount: 1.735 kg

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Enclosure: Outdoor UV Stabilized Plastic

• Max. Power Consumption: 8,5W

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)

• Voltage Rang: 22 - 26V

• Max. Conducted: TX Power 22 dBm (per Chain)

• Gain: 26 dBi

• Mounting: Pole-Mount (Kit Included)

• Wind Loading: 550 N @ 200 km/h

• Wind Survivability: 200 km/h

• ESD/EMP Protection: ± 24kV Contact/Air

• Operating Temperature: -40 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• Operating Frequency Worldwide:

• 4800 -6200 MHz

•
