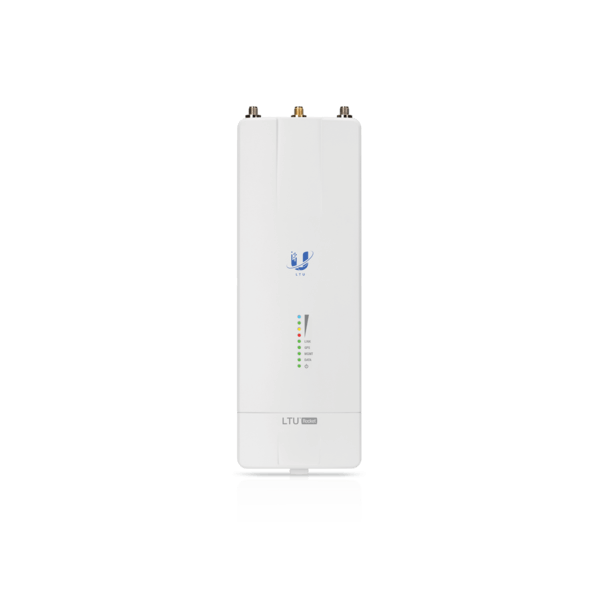

Ubiquiti LTU-Rocket, 5GHz LTU

LTU Rocket

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.

Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

Product Specification

• Dimensions: 244 x 82 x 48 mm

• Weight: 0.468 kg

• Enclosure: Diecast Aluminum and Polycarbonate

• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS)

• GPS Antenna: External Magnetic Base

• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)

• Power Method: Proprietary 4-Pair Passive PoE, Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-

• Max. Power Consumption: 15W

• Voltage Range: +18 to +54VDC*

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Mounting:

• Integrated Pole Mount (Included)

• Rocket Mount Compatible

• GPS Pole Mount (Included)

• Operating Temperature: -40 to 55° C

• Weatherproofing: IP67**

• Certifications: FCC Part 15.407, CE EN 302502 v1.2.1, EN 301 893 v1.7.1

• Maximum Throughput: 675.84 Mbps ***, ****

• Maximum Range: 100+ km***

• Packets per Second: 2+ Million

• Encryption: WPA2-PSK (AES)

• Forward Error Correction: LDPC

• Uplink/Downlink Ratio: 25/75, 33/67, 50/50

• OS: airOS LTU

• Wireless Modes: AP

• Frequency Range EU: 5150 - 5875 MHz

• Frequency Range Worldwide: 4900 - 6200 MHz

• Max. Conducted TX Power: 29 dBm (Dependent on Regulatory Region)

• Frequency Accuracy: < 2 ppm

• Channel Bandwidth: 10/20/30/40/50 MHz Selectable (Programmable Uplink and Downlink Duty Cycles)

* Full range depends on Ethernet cable length.

** After installation of IP67 upgrade kit (included).

*** Values may vary depending on the environmental conditions.

**** 1+ Gbps with future firmware upgrade.
