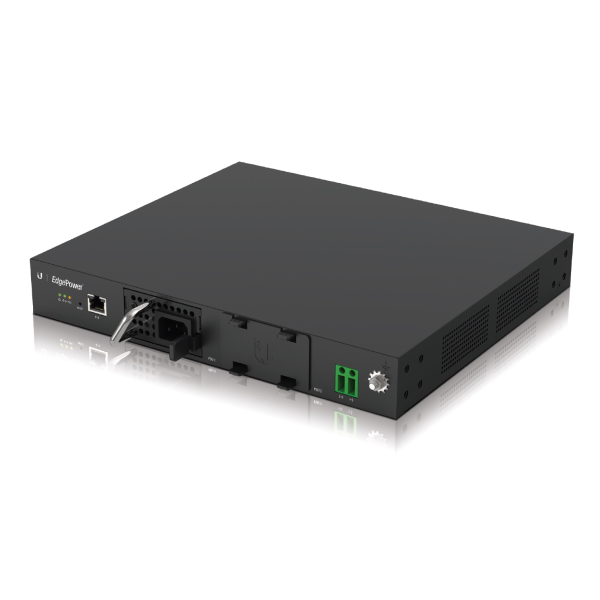

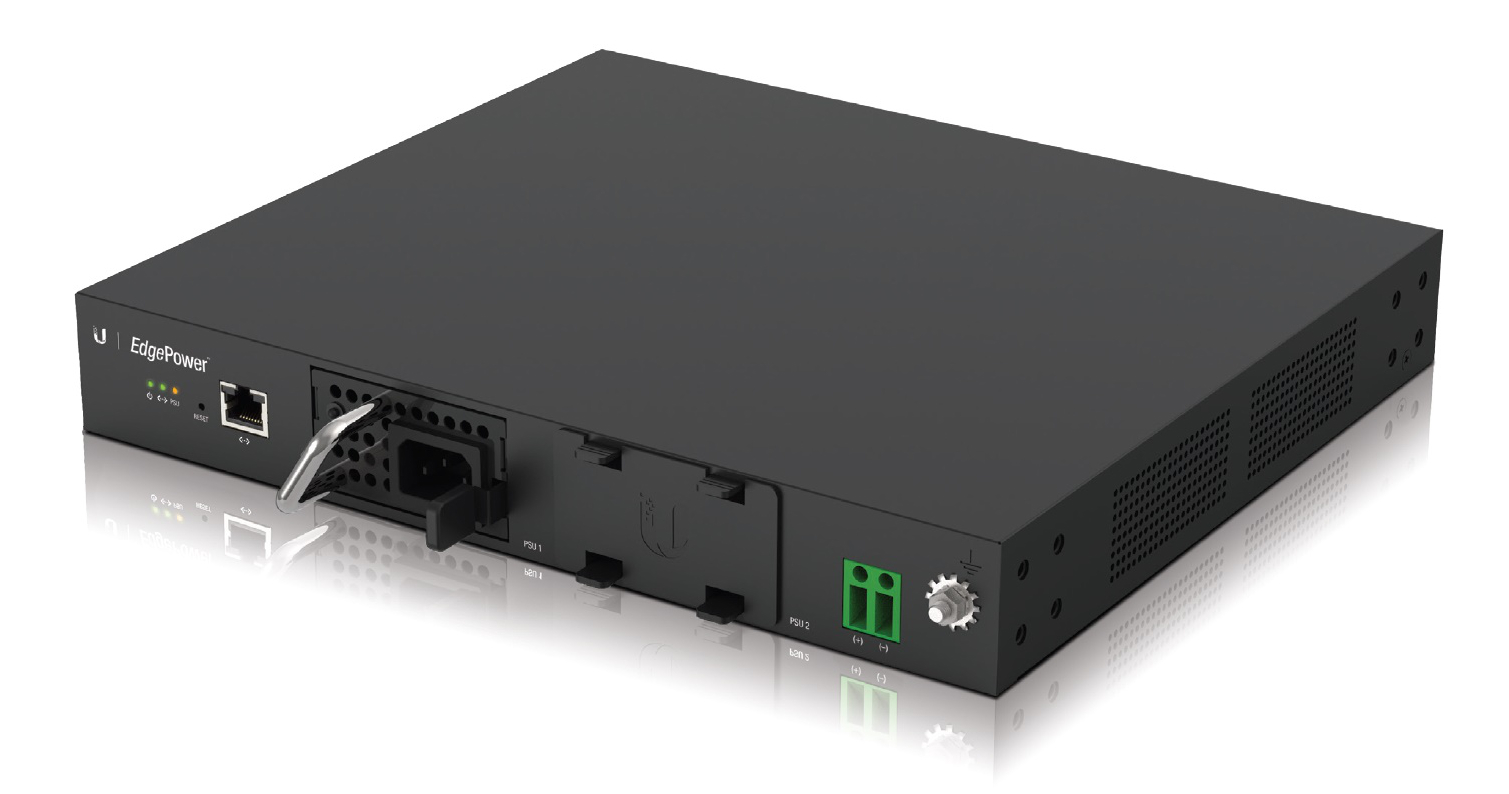

Ubiquiti Modular DC Power Supply for EdgePoint

The EdgePower is a high power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices. The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup. It consists of a rack mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module.



Product Specification
• Dimensions (w/o mount brackets): 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675")
• Weight (w/o mount brackets): 2.7 kg (5.95 lbs)
• Power Method: 100-240VAC/50-60 Hz, Universal Input
• Maximum Power Output: 150W (1 PSU Module) / 300W (2 PSU Modules @ 150W Each)
• LEDs: System On/Off, Management Port Link, PSU1+PSU2, PSU1/PSU2
• Networking Interface: (1) 10/100 RJ45 Ethernet
• Management Interface: Ethernet In-Band, Web UI
• Rack-Mount: Yes, 1U High
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Operating Humidity: 10 to 90% RH
• ESD/EMP Protection: Air ± 24KV; Contact ± 24KV
• Certifications: CE, FCC, IC
