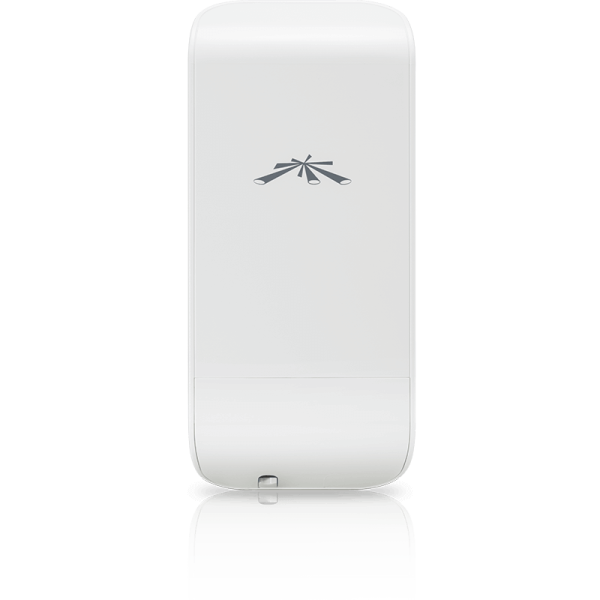

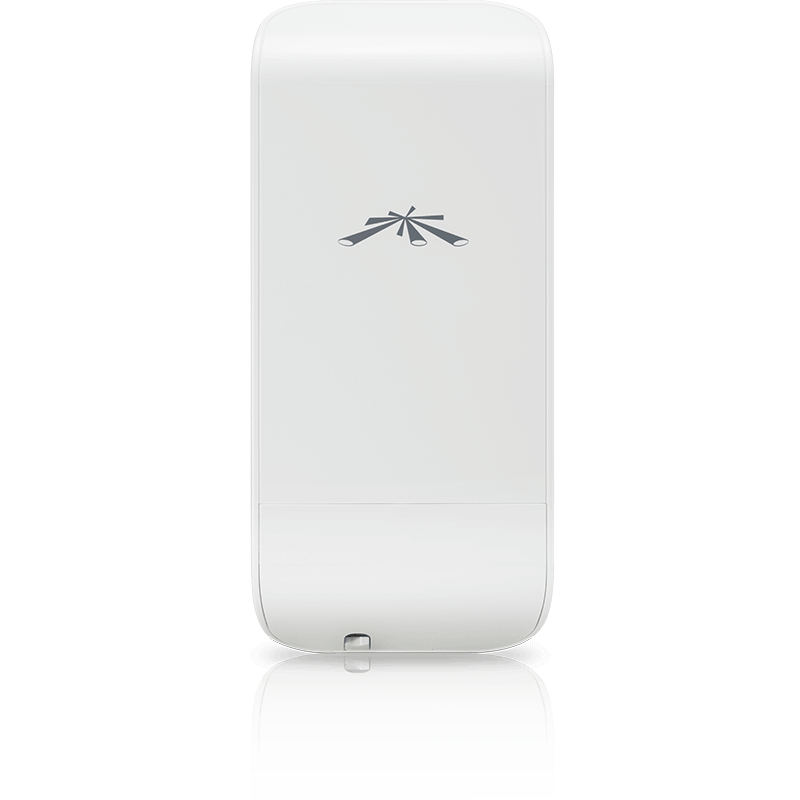

Ubiquiti NanoStation loco M5 AirMax 5GHz - LOCOM5

LocoM5

Ubiquiti Networks sets the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation®. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.

Features:

• Versatile Mounting

• Improved Surge Protection

• Efficient Footprint

• Quick Installation

Product Specification

• Dimensions: 161 x 31 x 80 mm

• Weight: 180 g

• Power Supply (PoE): 24V, 0.5A

• Max. Power Consumption: 5.5W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Operating Frequency MHz (Worldwide): 5170-5875

• Gain: 13 dBi

• Networking Interface: (1) 10/100 Ethernet Port

• Processor Specs: Atheros MIPS 24Kc, 400 MHz

• Memory: 64 MB DDR2, 8 MB Flash

• Frequency: 5 GHz

• Cross-pol Isolation: 20 dB Minimum

• Max. VSWR: 1.4:1

• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Mounting: Pole-Mount (Kit Included)

• Operating Temperature: -30 to 75° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC Part 15.247, IC RS210, CE

• RoHS Compliance: Yes

• Shock & Vibration: ETSI300-019-1.4
