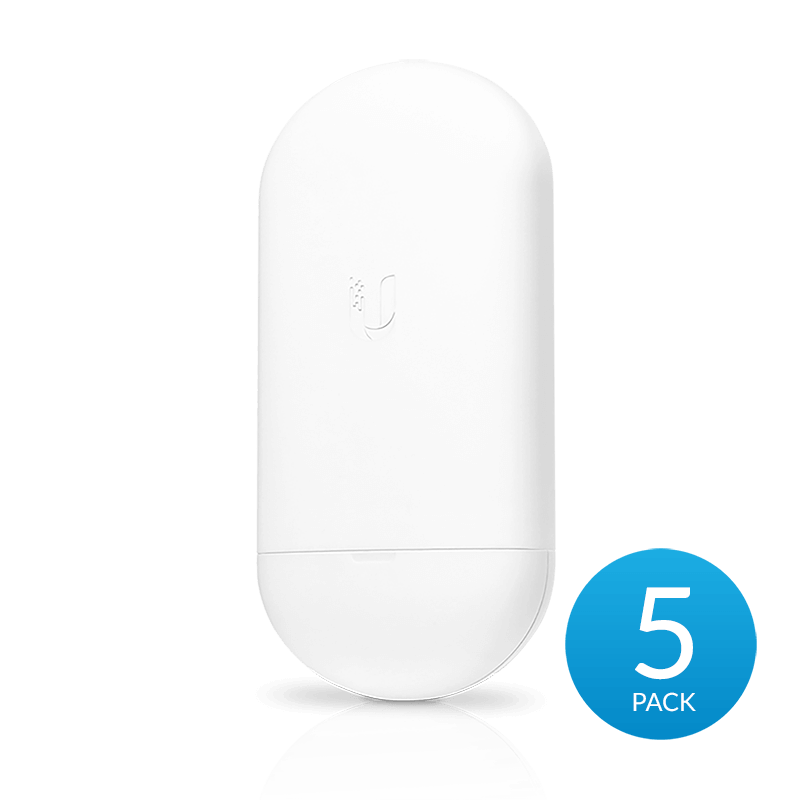

Ubiquiti NanoStation Loco5AC 13dBi 5Ghz Pack de 5

NanoStation 5AC loco

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Features:

• New antenna

• Improved design

• Management WiFi Radio/UNMS mobile app

• AirOS 8

Product Specification

• Dimensions: 179 x 77.5 x 59.1 mm

• Weight: 180 g

• Power Supply: 24V, 0.3A Gigabit PoE Supply (Not included)

• Max. Power Consumption: 7W

• Power Method: Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)

• Gain: 13 dBi

• Networking Interface: 10/100/1000 Mbps Ethernet Port

• Channel Bandwidths: 10/20/30/40/50/60/80 MHz

• Processor Specs: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2

• Cross-pol Isolation: 20 dB Minimum

• Max. VSWR: 1.8:1

• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• LEDs: (1) Power

• Mounting: Pole-Mount (Kit Included)

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• RoHS Compliance: Yes

• ESD/EMP Protection: ±24kV Contact/Air

• Shock & Vibration: ETSI300-019-1.4

• Certifications: CE, FCC, IC

NOTE: Doesn’t include PoE injectores
