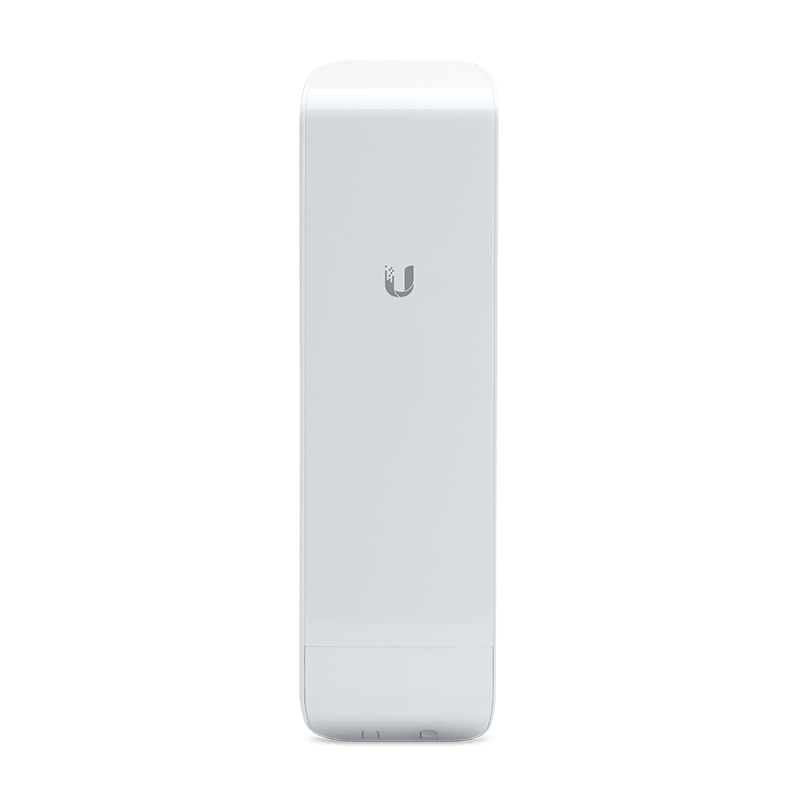

Ubiquiti NanoStation M5 AirMax 5GHz

SKU
NSM5
90,59 € 73,65 €
EAN
810354022548

Em Stock

Entrega prevista 18 de fevereiro

NSM5

Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.

Product Specification

  • Dimensions:294 x 31 x 80 mm

  • Weight: 400 g

  • Power Supply (PoE): 24V, 0.5A

  • Max. Power Consumption: 8W

  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • Operating Frequency: 5170-5875 MHz

  • Gain: 14.6-16.1 dBi

  • Networking Interface: (2) 10/100 Ethernet Ports

  • Processor Specs: Atheros MIPS 74Kc, 560 MHz

  • Memory: 64 MB DDR2, 8 MB Flash

  • Frequency: 5 GHz

  • Cross-pol Isolation: 22 dB Minimum

  • Max. VSWR: 1.6:1

  • Beamwidth: 43° (H-pol) / 41° (V-pol) / 15° (Elevation)

  • Polarization: Dual Linear

  • Enclosure: Outdoor UV Stabilized Plastic

  • Mounting: Pole-Mount (Kit Included)

  • Operating Temperature: -30 to 75° C

  • Operating Humidity: 5 to 95% Noncondensing

  • Wireless Approvals: FCC Part 15.247, IC RS210, CE

  • RoHS Compliance: Yes

  • Shock & Vibration: ETSI300-019-1.4
