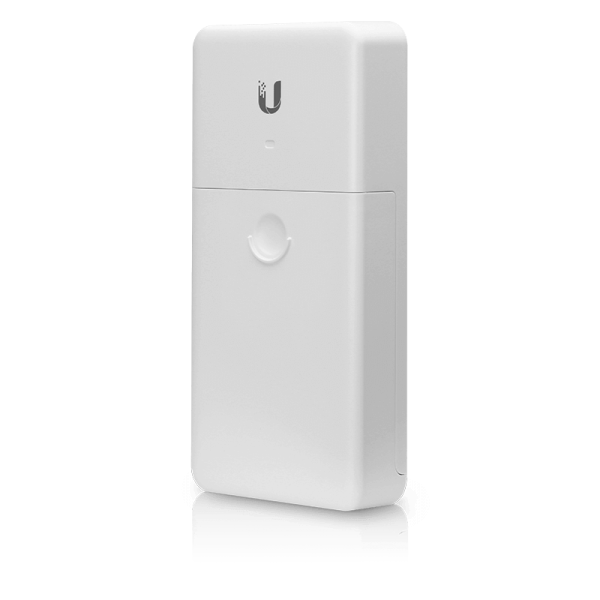

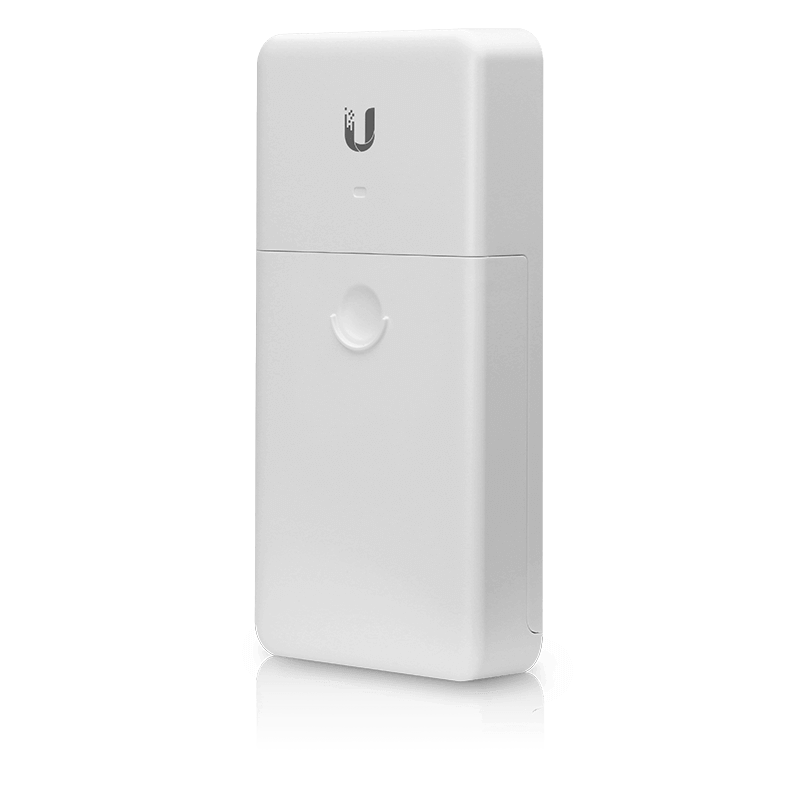

Ubiquiti NanoSwitch Outdoor 4-Port Passthrough Switch

NanoSwitch

The NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

Product Specification

• Dimensions: 196.4 x 93.5 x 32.4mm

• Weight: 269g

• Enclosure Characteristics: White Polycarbonate

• Processor: RTL8367N-VB

• On-Board Flash Storage: 4Kbits

• Total Non-Blocking Line Rate: 4Gbps

• TYP. Power Consumption: 1.5W

• Power Method: Passive 24V PoE-in

• Supported Voltage Range: Passive 24V PoE-in

• Networking Interfaces: (4) 10/100/1000 Mbps Ethernet RJ45

• PoE Interfaces: Passive 24V PoE-in

• Max PoE+ Wattage per Port by PSE: 24V@1A per port / Total 24V@1.5A for three ports

• Passive PoE Max wattage per port: 24W per port / Total 36W for three ports

• Operating Temperature: -30C ~ 70C

• Operating Humidity: 5 to 95% Non-Condensing

NOTE: PoE Injector Not Included
