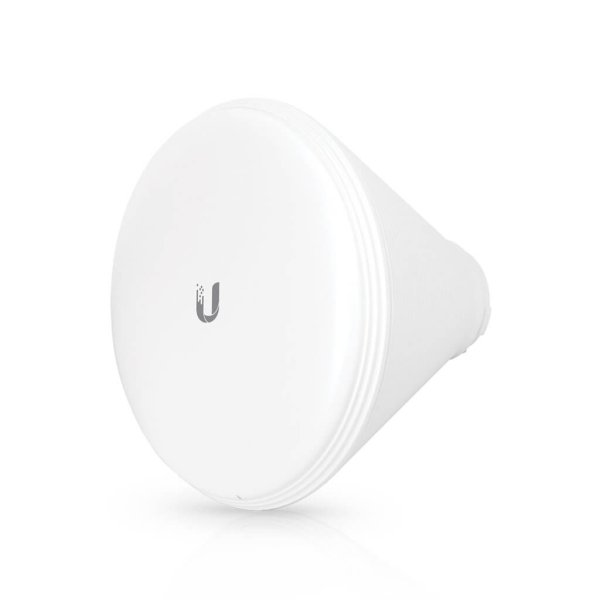

Ubiquiti Networks PrismAP-5 30º

SKU
HORN-5-30
74,13 € 60,27 €
RocketDish 5G: 5GHz AirMax 2x2 PtP Bridge Dish Antenna with 30dBi
EAN
817882020060

Sem stock

Contacte-nos para previsão

Horn-5-30

With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co-location performance without sacrificing gain.

Product Specification

  • Dimensions: Ø 221.4 x 184.2 mm

  • Weight: 1.1 kg

  • Supported Frequency Range: 5.15 - 5.85 GHz

  • Gain: 19 dBi

  • HPOL Beamwidth: 30°

  • VPOL Beamwidth: 30°

  • Elevation Beamwidth: 30°

  • Maximum VSWR: 1.7:1

  • Wind Survivability: 200 km/h

  • Wind Loading: 56 N @ 200 km/h

  • Polarization: Dual-Linear

  • Cross-Pol Isolation: 17 dB
