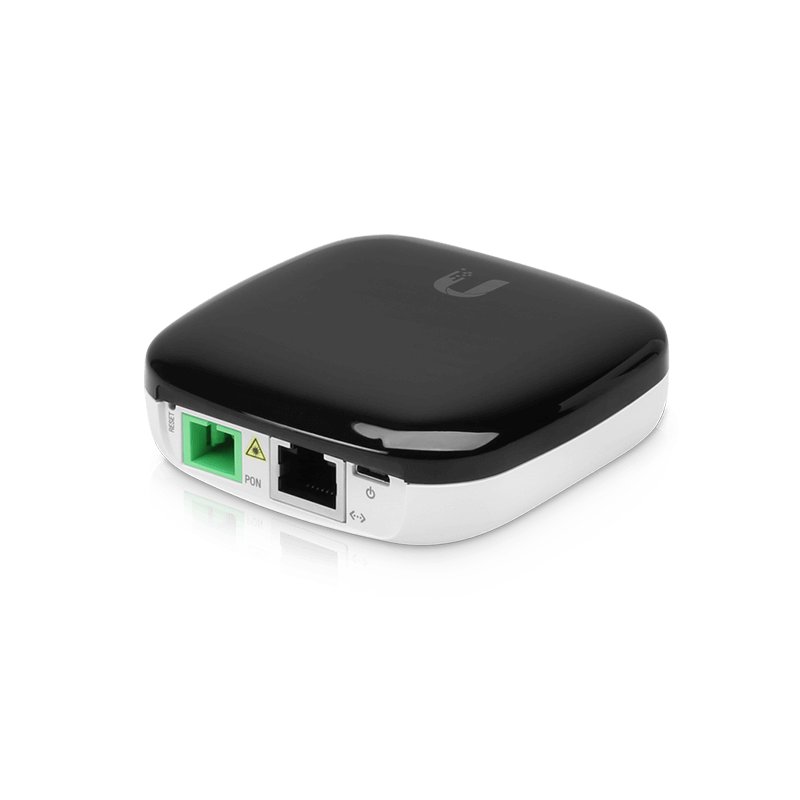

UBIQUITI ONU GPON CPE 1GE UFIBER UF-LOCO 24V PACK 5

UF-LOCO-5

Gigabit Passive Optical Network CPE

Features:

• High-Performance GPON CPE

• LED diodes for easy diagnostics

• Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream

• Supports up to 20 km GPON Links

• Powerful Layer 2/3 Management Features

• GPON WAN Port

• RJ45 Gigabit LAN Port

• SC/APC Fiber Connector

Product Specification

• Dimensions: 76.5 x 76.5 x 26.4 mm

• Weight: 77 g

• Networking Interfaces: (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN

• Networking Interface Speeds:

• (1) GPON WAN, ITU G.984,

• 2.488 Gbps Downstream,

• 1.244 Gbps Upstream

• (1) GbE LAN, 10/100/1000 Mbps

• Management Interface: In-Band Ethernet PON

• Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm

• Power Method: Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8)

• Power Supply: Micro-USB Power Adapter: 5V, 1A

• Max. Power Consumption: 3.5W

• Supported Voltage Range: 4.7 to 5.3V

• Processor Specs: MIPS-32, 240 MHz

• Memory Information: 128 MB DDR3

• Button: (1) Reset

• Operating Temperature: -10 to 45° C

• Operating Humidity: 10 to 90% Noncondensing

• Certifications: CE, FCC, IC

NOTE: Don't include Micro-USB Power Adapter
