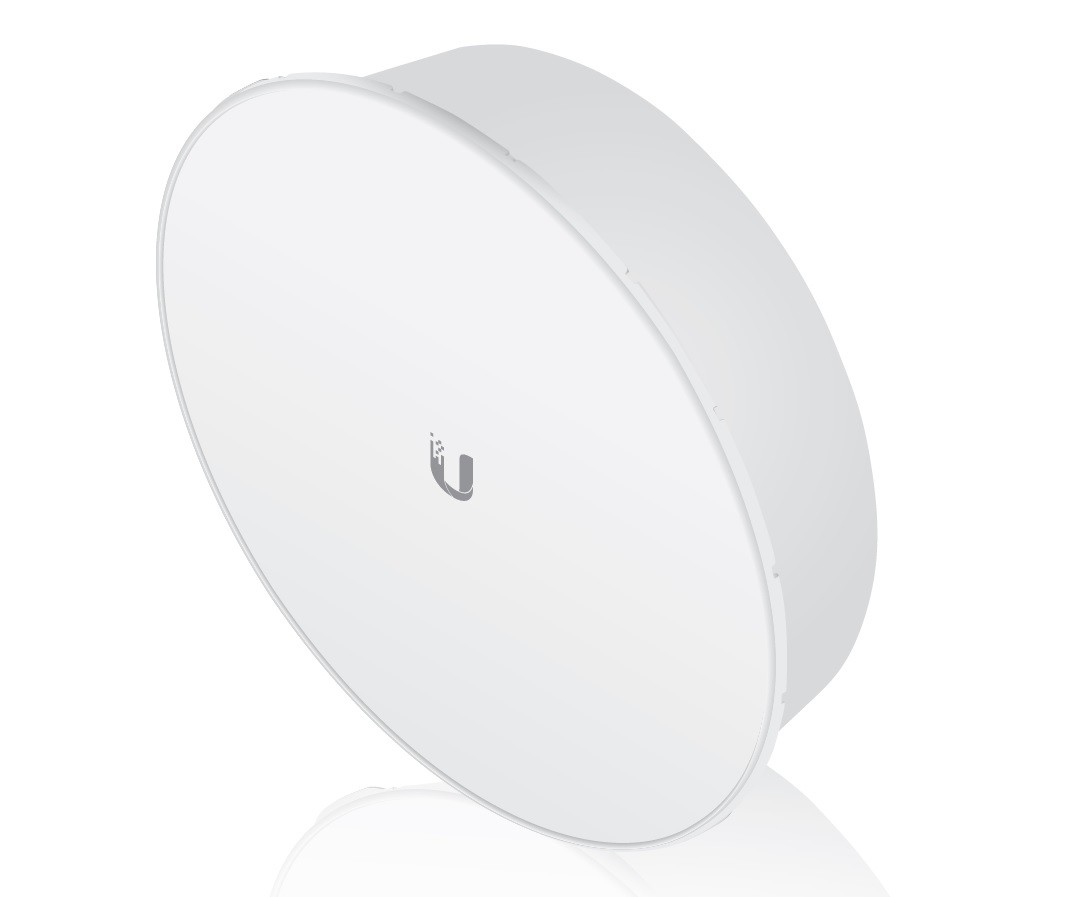

Ubiquiti PowerBeam 5 GHz 27 dbi airMAX ac Bridge with ISO

PBE-5AC-500-ISO

Product Specification

• Dimensions: 564 x 564 x 308 mm

• Weight: 5.2 kg

• Power Supply: 24V, 0.5A Gigabit PoE

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Supported Voltage Range: 20-26VDC

• Max. Power Consumption: 8W

• Operating Frequency Worldwide: 5150 - 5875 MHz

• Gain: 27 dBi

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor Specs: Atheros MIPS 74Kc, 720 MHz

• Memory: 128 MB DDR2, 16 MB Flash

• LEDs: (1) Power, (1) LAN, (4) WLAN

• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

• Channel Sizes:

• PtP Mode: 10/20/30/40/50/60/80 MHz

• PtMP Mode: 10/20/30/40 MHz

• Max. VSWR: 1.5:1

• Built-In Mechanical Downtilt: ± 20°

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Mounting: Pole-Mount Kit Included

• Wind Loading: 984 N @ 200 km/h

• Wind Survivability:200 km/h

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Wireless Approvals: FCC, IC, CE

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
