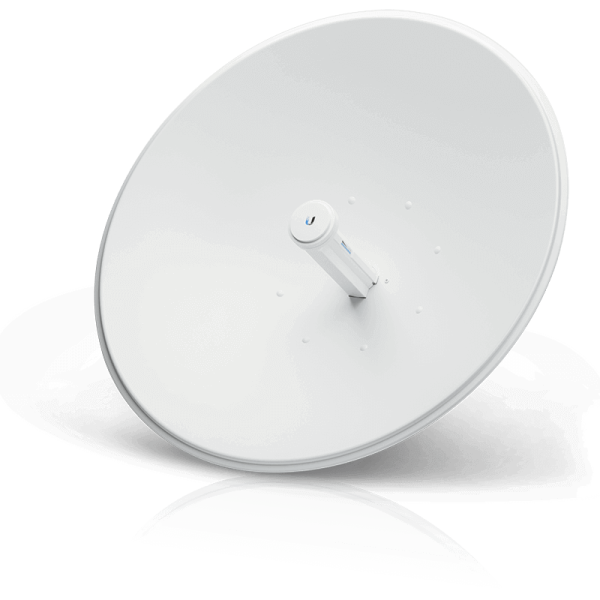

Ubiquiti PowerBeam 5GHz AC, 620mm World

SKU
PBE-5AC-620
221,13 € 179,78 €
High Performance airMAX® Bridge 5GHz AC 29dBi. Outdoor dual lineal polarization.
EAN
810354022593

Sem stock

Contacte-nos para previsão

PBE-5AC-620

High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.

Features:

  • Highly Efficient Antenna Beam Performance

  • Custom Ubiquiti® airMAX® ac Processor

  • Up to 450+ Mbps Real TCP/IP Throughput

  • Innovative Snap and Lock Assembly

  • Proprietary InnerFeed™ Technology

Product Specification

  • Dimensions: 620 x 620 x 386 mm

  • Weight: 6.4 kg

  • Power Supply: 24V, 0.5A Gigabit PoE

  • Max. Power Consumption: 8.5W

  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • Supported Voltage Range: 20 to 26VDC

  • Operating Frequency MHz Worldwide: 5150 - 5875

  • Gain: 29 dBi

  • Networking Interface: (1) 10/100/1000 Ethernet Port

  • Processor Specs: Atheros MIPS 74Kc, 720 MHz

  • Memory: 128 MB DDR2, 16 MB Flash

  • LEDs: (1) Power, (1) LAN, (4) WLAN

  • Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

  • Max. VSWR: 1.6:1

  • Channel Sizes:

    • PtP Mode: 10/20/30/40/50/60/80 MHz

    • PtMP Mode: 10/20/30/40 MHz

  • Polarization: Dual Linear

  • Enclosure: Outdoor UV Stabilized Plastic

  • Mounting: Pole-Mount (Kit Included)

  • Wind Loading Radome Excluded: 1510 N @ 200 km/h

  • Wind Loading Radome Included: 1830 N @ 200 km/h

  • Radome Included: 1830 N @ 200 km/h (411 lbf @ 125 mph)

  • Wind Survivability: 200 km/h (125 mph)

  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

  • Operating Temperature: -40 to 70° C (-40 to 158° F)

  • Operating Humidity: 5 to 95% Noncondensing

  • Wireless Approvals: FCC, IC, CE

  • RoHS Compliance: Yes

  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

  • Vibration Test: IEC 68-2-6

  • Temperature Shock Test: IEC 68-2-14

  • UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
