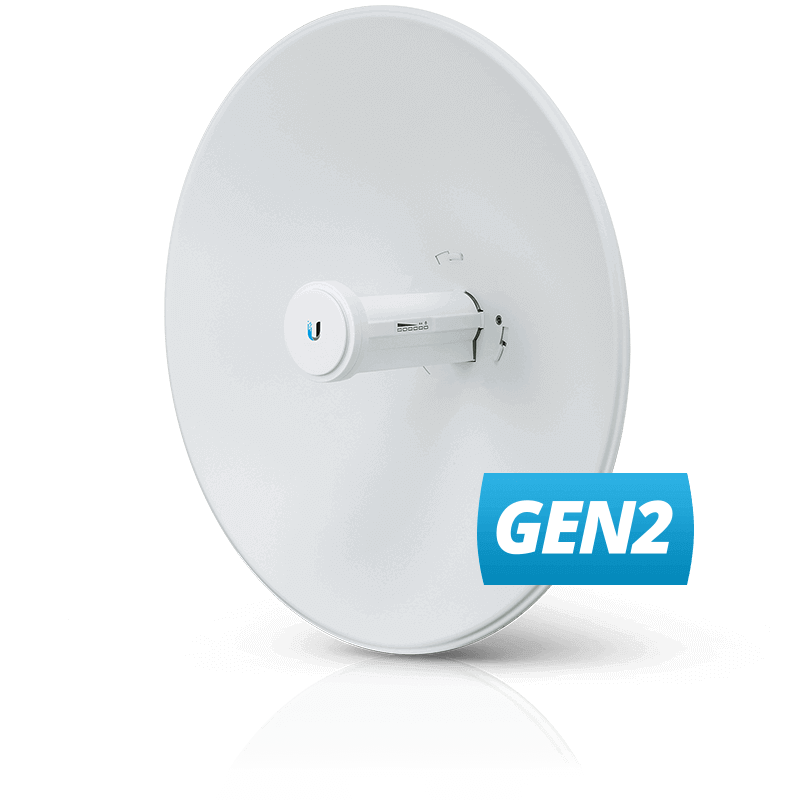

Ubiquiti PowerBeam 5GHz AC Gen2 25dBi

SKU
PBE-5AC-GEN2
128,07 € 104,12 €
High Performance airMAX® Bridge 5GHz AC. Outdoor dual lineal polarization
EAN
810354026720

Em Stock

Entrega prevista 13 de fevereiro

PBE-5AC-GEN2

Powerful dish reflector design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent beam directivity provides the best performance for PtP or PtMP links located in high-noise environments.

Features:

  • Improved radio design

  • Improved mounting

  • Improved surge protection

  • Management WiFi Radio/UNMS mobile app

  • AirOS 8

Product Specification

  • Dimensions: 420 x 420 x 230 mm

  • Weight: 2.22 kg

  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

  • Max. Power Consumption: 8.5W

  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • Supported Voltage Range: 20 to 26VDC

  • Gain: 25 dBi

  • Networking Interface: (1) 10/100/1000 Ethernet Port

  • Processor Specs: MIPS 74Kc

  • Memory: 64 MB

  • LEDs: Power, Ethernet, (4) Signal Strength

  • Channel Sizes:

    • PtP Mode: 10/20/30/40/50/60/80 MHz

    • PtMP Mode: 10/20/30/40 MHz

  • Enclosure Characteristics:

    • Antenna Feed: Outdoor UV Stabilized Plastic

    • Dish Reflector: Powder-Coated SPCC

  • Mounting: Pole-Mounting Kit (Included)

  • Wind Loading: 380 N @ 200 km/h

  • Wind Survivability: 200 km/h

  • ESD/EMP Protection: Air: ± 24 kV Contact: ± 24 kV

  • Operating Temperature: -40 to 70° C

  • Operating Humidity: 5 to 95% Noncondensing

  • RoHS Compliance: Yes

  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

  • Vibration Test: IEC 68-2-6

  • Temperature Shock Test: IEC 68-2-14

  • UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

  • Certifications: CE, FCC, IC
