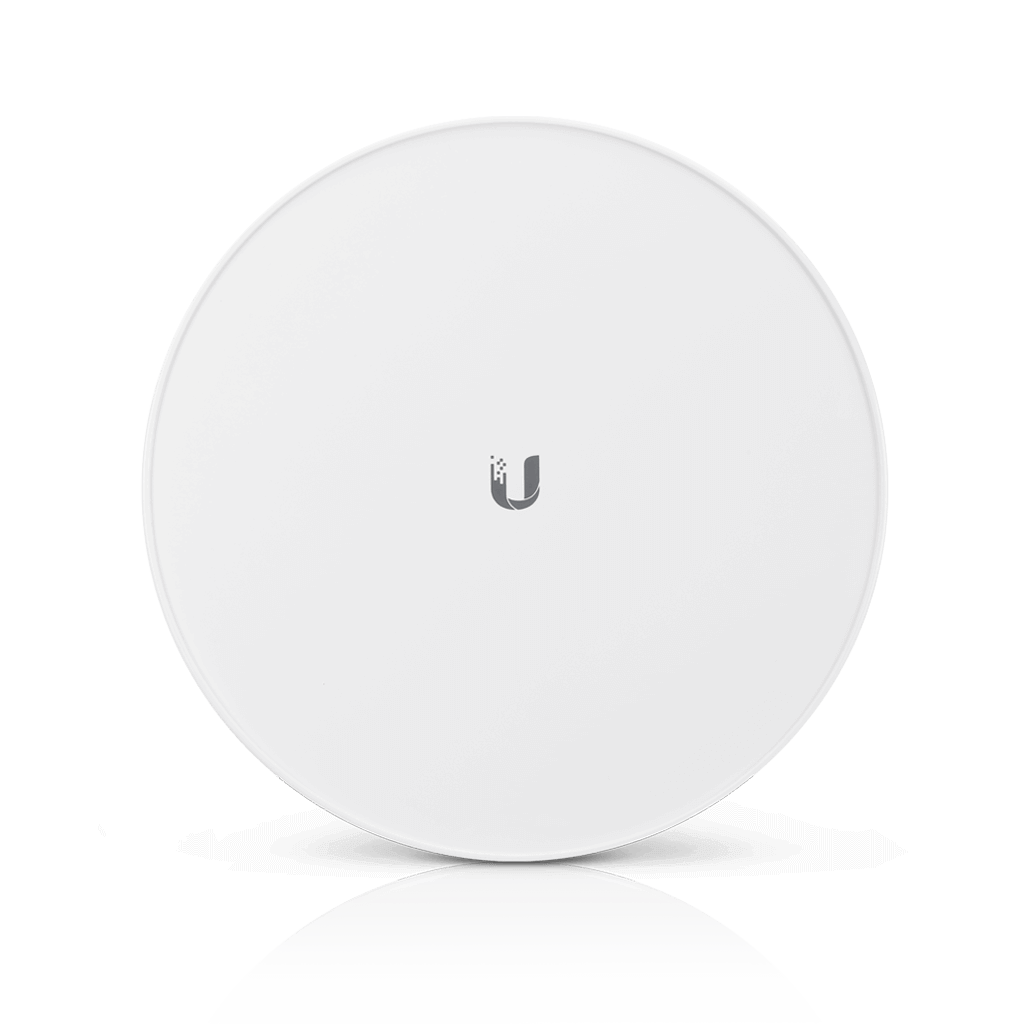

Ubiquiti PowerBeam Gen 2 ISO 5 GHz ac bridge

PBE-5AC-ISO-Gen2

The PBE-5AC-ISO-Gen2 supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection. It features a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest elements. The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO-Gen2 delivers improved noise immunity in co-location deployments

Product Specification

• Dimensions: 459 x 459 x 261 mm

• Weight (Mount Included): 3.22 kg

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Max. Power Consumption: 8.5W

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Supported Voltage Range: 20 to 26VDC

• Gain: 25 dBi

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor Specs: MIPS 74Kc

• Memory: 64 MB

• LEDs: Power, Ethernet, (4) Signal Strength

• Channel Sizes:

• PtP Mode: 10/20/30/40/50/60/80 MHz

• PtMP Mode: 10/20/30/40 MHz

• Enclosure Characteristics:

• Antenna Feed: Outdoor UV Stabilized Plastic

• Dish Reflector: Powder-Coated SPCC

• Mounting: Pole-Mounting Kit (Included)

• Wind Loading: 559 N @ 200 km/h

• Wind Survivability: 200 km/h

• ESD/EMP Protection: Air: ± 24 kV Contact: ± 24 kV

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

• Certifications: CE, FCC, IC
