Ubiquiti RocketDish 4.9-5GHz 30dBi Dual-Pol Parabolic Antenna

SKU
RD-5G30
126,78 € 103,07 €

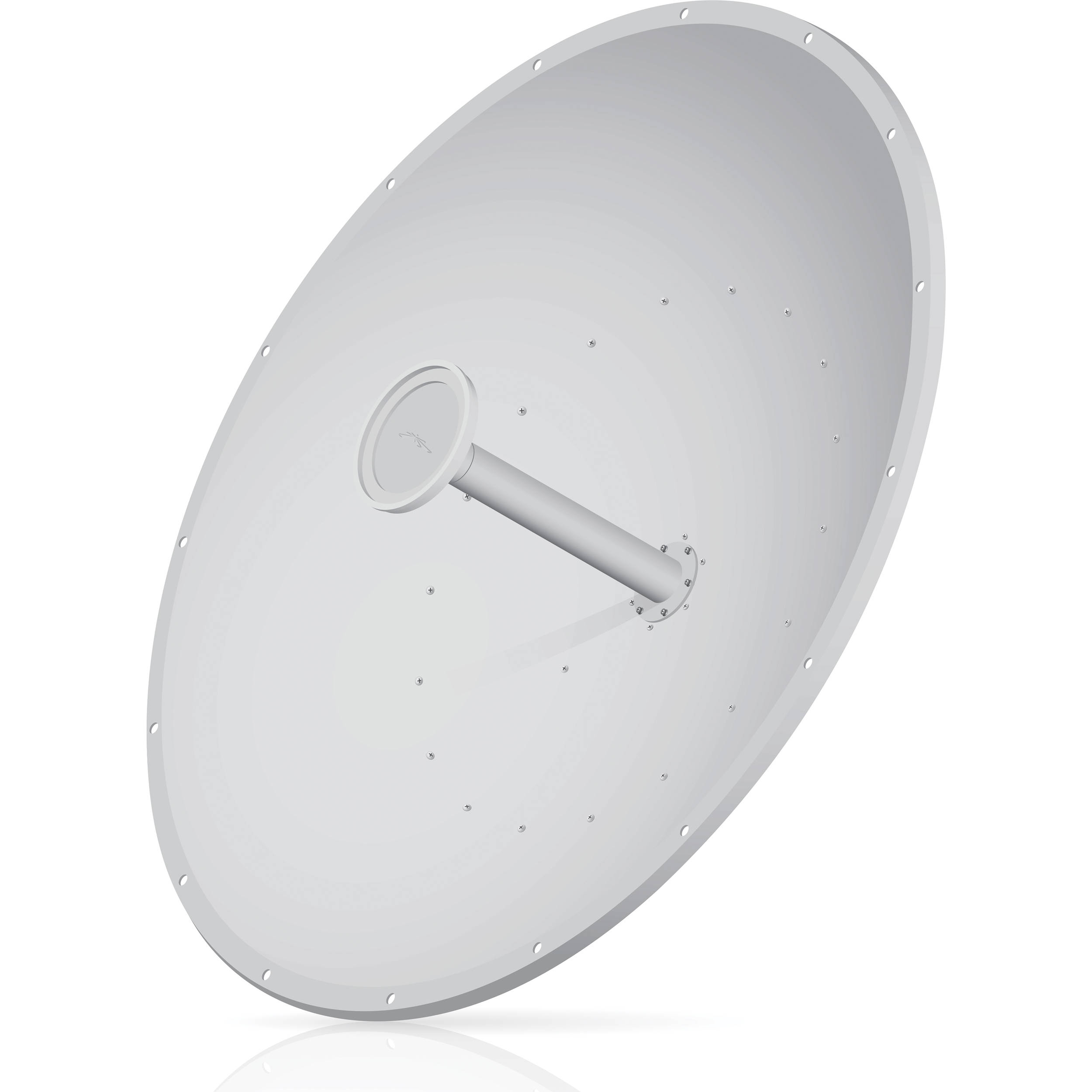

Ubiquiti Networks RD-5G30 is a RocketDish operating between 4.9 and 5GHz, with a 30dBi gain. This parabolic dish antenna is designed to work with the Rocket M5
EAN
810354021282

Sem stock

Contacte-nos para previsão

RD-5G30

Product Specification

  • Dimensions*: 650 x 650 x 304 mm

  • Weight**: 9.8 kg

  • Frequency Range: 5 - 5.9 GHz

  • Gain: 30 dBi

  • HPOL Beamwidth: 5° (3 dB)

  • VPOL Beamwidth: 5° (3 dB)

  • F/B Ratio: 34 dB

  • Max. VSWR: 1:4:1

  • Wind Loading: 787 N @ 200 km/h

  • Wind Survivability: 200 km/h

  • Polarization: Dual-Linear

  • Cross-Pol Isolation: 35 dB Min.

  • ETSI Specification: EN 302 326 DN2

  • Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included

* Dimensions exclude pole mount and Rocket (Rocket sold separately)

** Weight includes pole mount and excludes Rocket (Rocket sold separately)
